Callout |
Component Name |
---|---|
Preliminary Procedure
Remove the sunroof module. Refer to Sunroof Module Assembly Replacement. |
|
1 |

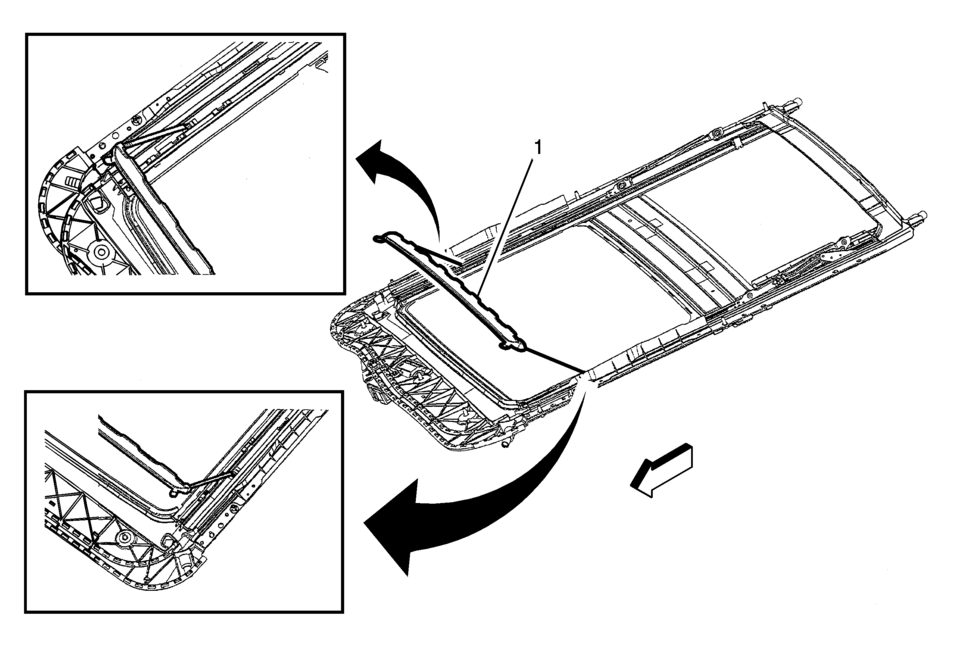

Sunroof Air Deflector Tip: Cycle the sunroof window to the full rearward position. |
Water Inlet Replacement (LUV)
Removal Procedure
Drain the cooling system. Refer to Cooling System Draining and Filling.
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct
Replacement.
Remove the engine coolant temperature sensor connector (1) and the radiator
ou ...
Turbocharger Wastegate Regulator Solenoid Valve Replacement
Charge Air Bypass Regulator Solenoid Valve Replacement
Callout
Component Name
Preliminary Procedure
Disconnect the radiator outlet hose from the water inlet. Refer to
Water Inlet Replacement.
1
T ...
Transmission Mount Bracket Replacement - Left Side
Removal Procedure
Remove the left transmission mount. Refer to
Transmission Mount Replacement - Left Side.
Remove the three left transmission mount bracket to
transmission bolts (1).
Remove the left transmission mount bracket (2) from
the transmis ...
