Chevrolet Sonic Repair Manual: Sunroof Module Assembly Replacement

Chevrolet Sonic Repair Manual / Body / Roof - Fixed, Leisure / Moonroof/Sunroof / Sunroof Module Assembly Replacement



Sunroof Module Assembly Replacement

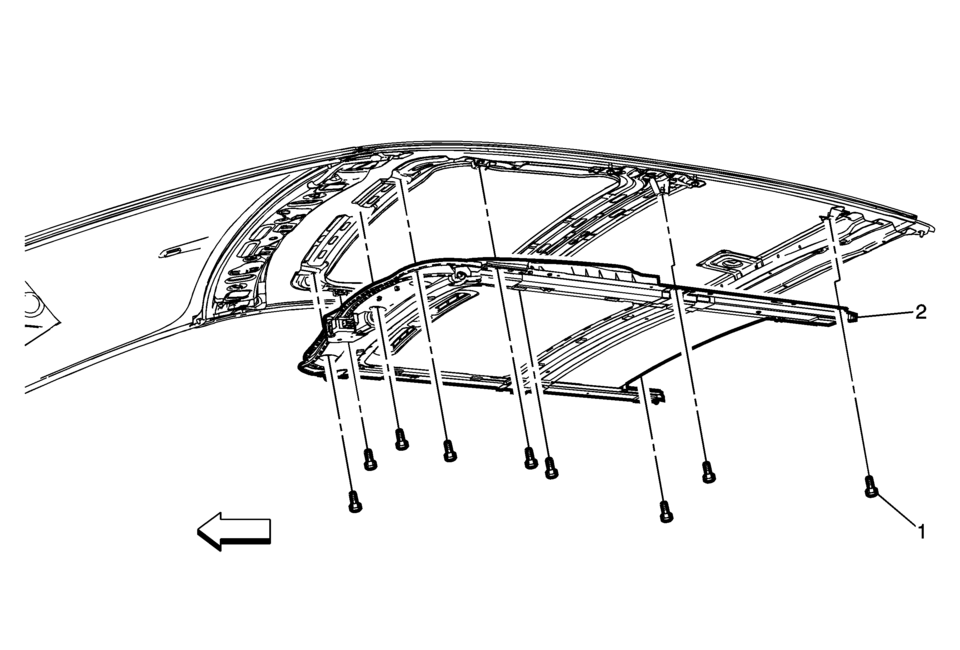

Callout

Component Name

Preliminary Procedures

  1. Remove the sunroof window. Refer to Sunroof Window Replacement.
  2. Remove the headliner. Refer to Headlining Trim Panel Replacement.
  3. Disconnect the front and rear sunroof drain hoses. Refer to Sunroof Housing Front Drain Hose Replacement and Sunroof Housing Rear Drain Hose Replacement.

1

Sunroof Module Bolts (Qty?€‰:9)

Caution:

Refer to Fastener Caution.

Procedure

  1. With an assistant, lower and remove the sunroof module assembly from the vehicle.
  2. Place the sunroof assembly on a clean dry surface.
  3. Transfer all necessary components to the new module assembly.
Tighten


9?€‰Y (80?€‰lb?€‰in)

2

Sunroof Module

Procedure

  1. Secure the harness to the sunroof module.
  2. Adjust the sunroof window. Refer to Sunroof Window Height and Opening Fit Adjustment.
  3. Verify the proper operation of the sunroof before securing the headliner.
  4. Ensure the motor/actuator initialization/teach process has been done. Refer to Sunroof Motor/Actuator Initialization/Teach Process.
Sunroof Housing Rear Drain Hose Replacement
Sunroof Housing Rear Drain Hose Replacement Callout Component Name Preliminary Procedures It is only necessary to lower the headlin ...

Sunroof Window Height and Opening Fit Adjustment
Note: Correct adjustment cannot be achieved if the sunroof window is closed from vent position. Cycle the sunroof window from full open to closed position. ., Note: Do Not re ...
