Chevrolet Sonic Repair Manual: Sunroof Window Height and Opening Fit Adjustment

Chevrolet Sonic Repair Manual / Body / Roof - Fixed, Leisure / Moonroof/Sunroof / Sunroof Window Height and Opening Fit Adjustment

Note:

Correct adjustment cannot be achieved if the sunroof window is closed from vent position.

Cycle the sunroof window from full open to closed position.

Note:

Do Not remove or lower headliner to access sunroof window screws.

Loosen the adjusting screws on the window.

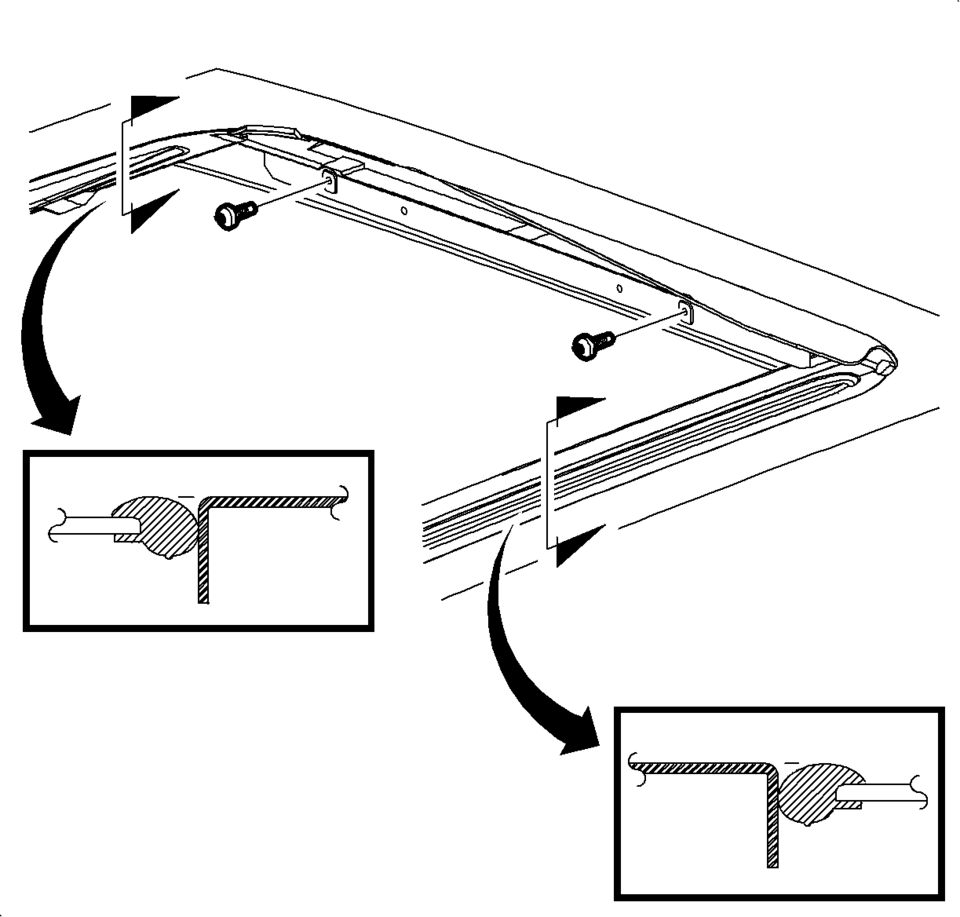

Adjust the corners of the front window panel using the following guidelines:

Adjust the front of the sunroof window to?€‰0.0?€‰mm?€‰??’?€‰1.0?€‰mm (0.0?€‰in?€‰??’?€‰0.04?€‰in?€‰) below the top surface of the roof panel.
Adjust the rear center line of the sunroof window to?€‰2?€‰mm?€‰ to ?€‰3?€‰mm (0 .08?€‰in?€‰ to?€‰0.12?€‰in?€‰) below the top surface of the roof panel.

Caution:

Refer to Fastener Caution.

Tighten the sunroof window adjustment screws to 5?€‰Y (44?€‰lb?€‰in)

Cycle sunroof window through all positions.

Inspect the sunroof window adjustment. Adjust if necessary.
