Chevrolet Sonic Repair Manual: Timing Belt Center Front Cover Removal

Chevrolet Sonic Repair Manual / Powertrain / Engine / Valvetrain / Valvetrain Timing / Timing Belt Center Front Cover Removal


    Remove the center front timing belt cover from the rear timing belt cover

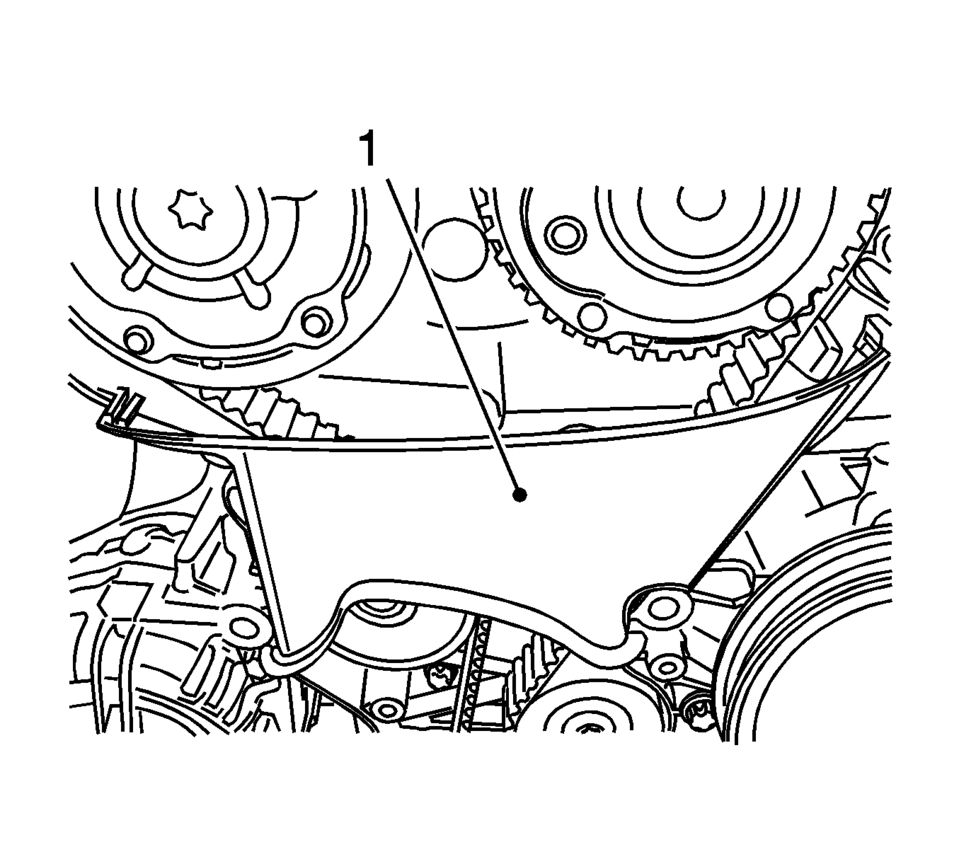

  1. Remove the center front timing belt cover from the rear timing belt cover at 2 locations.
  2. Remove the center front timing belt cover (1).
Timing Belt Center Front Cover Installation
Install the timing belt center front cover (1) to the timing belt rear cover at 2 locations. ...

Timing Belt Center Front Cover Replacement
Timing Belt Center Front Cover Replacement Callout Component Name Preliminary Procedure Remove the timing belt upper front cover. R ...
