Chevrolet Sonic Repair Manual: Timing Chain Tensioner Installation

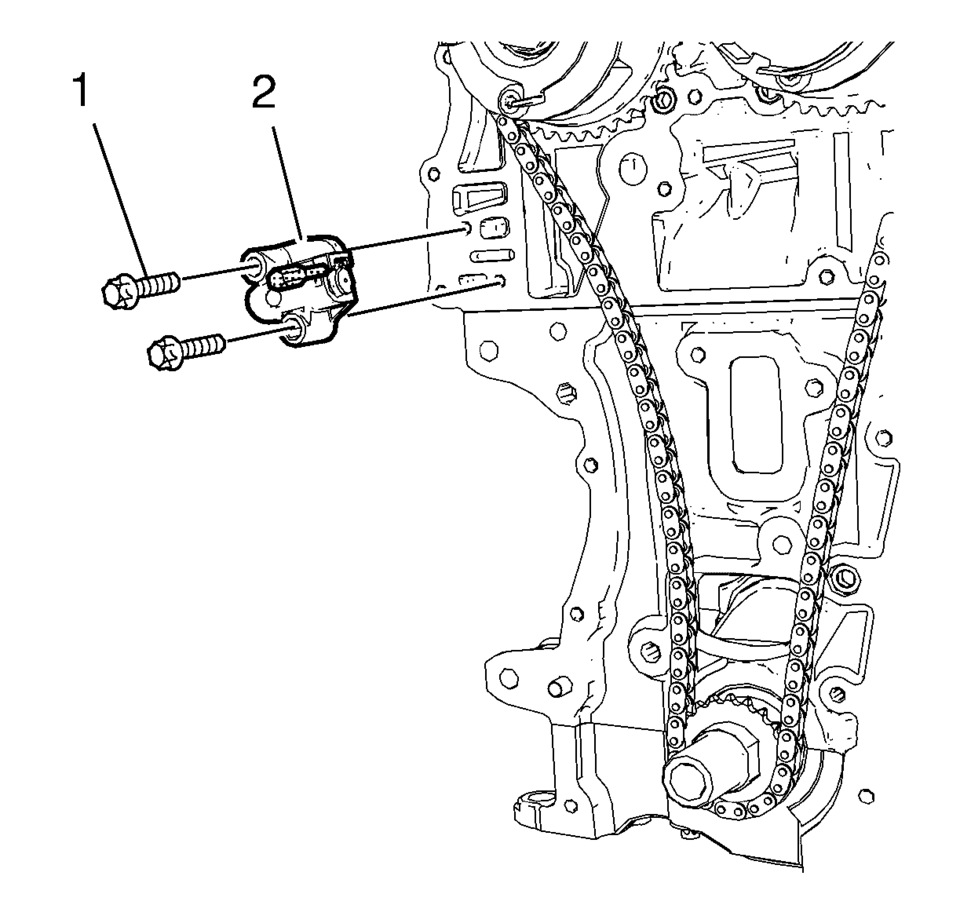

- Install the timing chain tensioner (2).
- Install the 2 timing chain tensioner bolts (1) and tighten to 8 Y (71 lb in)
.
Caution:
Refer to Fastener Caution.
Timing Belt Tensioner Replacement
Special Tools
EN-6333 Timing Belt Tensioner Locking Pin
EN-6340 Camshaft Locking Tool
EN-45059 Torque Angle Sensor Kit
For equivalent regional tools, refer to Special Tools.
Removal P ...
Timing Chain Tensioner Removal
Remove the 2 timing chain tensioner bolts (1).
Remove the timing chain tensioner (2).
...
