Timing Chain Tensioner Replacement

Callout

Component Name

Preliminary Procedure

Remove the camshaft timing chain . Refer to Camshaft Timing Chain Replacement.

1

Timing Chain Tensioner Fastener (Qty: 2)

Caution:

Refer to Fastener Caution.

Tighten


8 Y (71 lb in)

2

Timing Chain Tensioner

Timing Chain Tensioner Removal

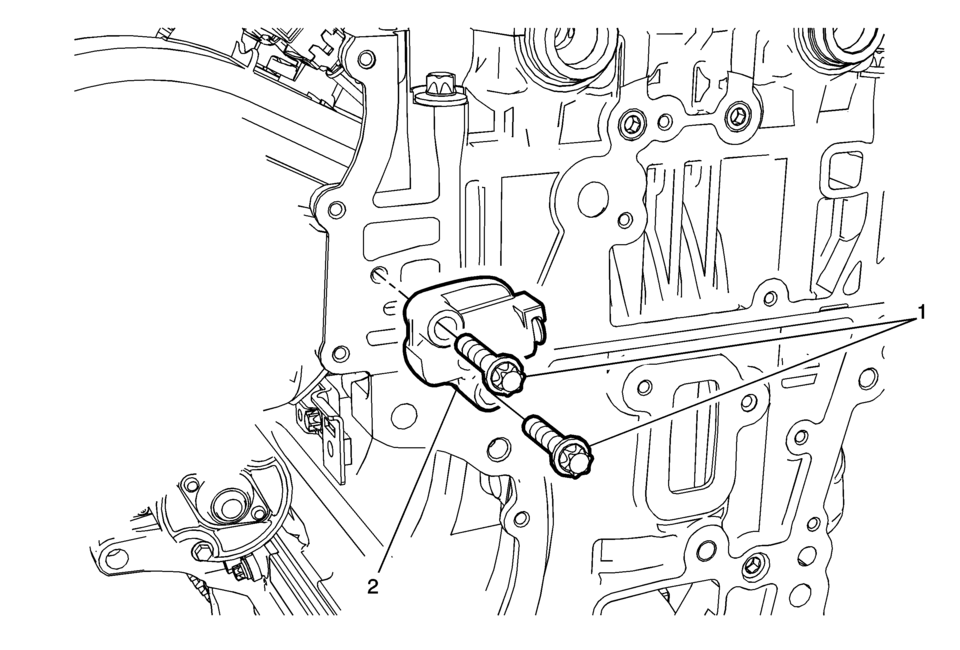

Remove the 2 timing chain tensioner bolts (1). Remove the timing chain tensioner (2). ...
