Chevrolet Sonic Owner's Manual: Vehicle Data

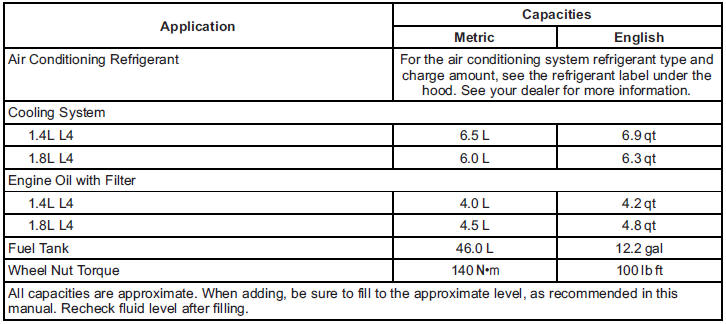

Capacities and Specifications
The following approximate capacities are given in metric and English conversions. See Recommended Fluids and Lubricants for more information.

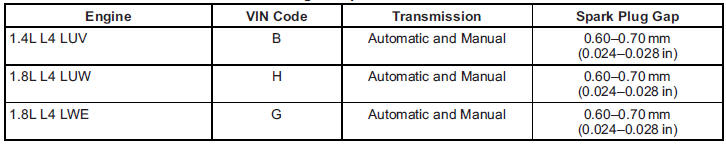

Engine Specifications
Engine Drive Belt Routing

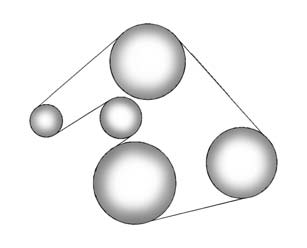

1.4L L4 Engine

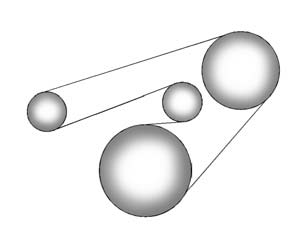

1.8L L4 Engine (with Air Conditioning)

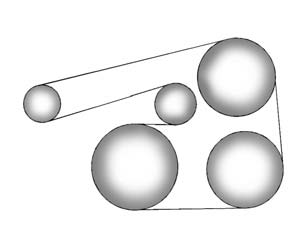

1.8L L4 Engine (without Air Conditioning)
Service Parts Identification Label
This label, in the spare tire well in the trunk, has the following information:
Vehicle Identification Number (VIN).
Model designation.
Paint information.
Production options and special equi ...
