Chevrolet Sonic Repair Manual: Warm Up Three-Way Catalytic Converter Replacement (LUV,LUW)
|

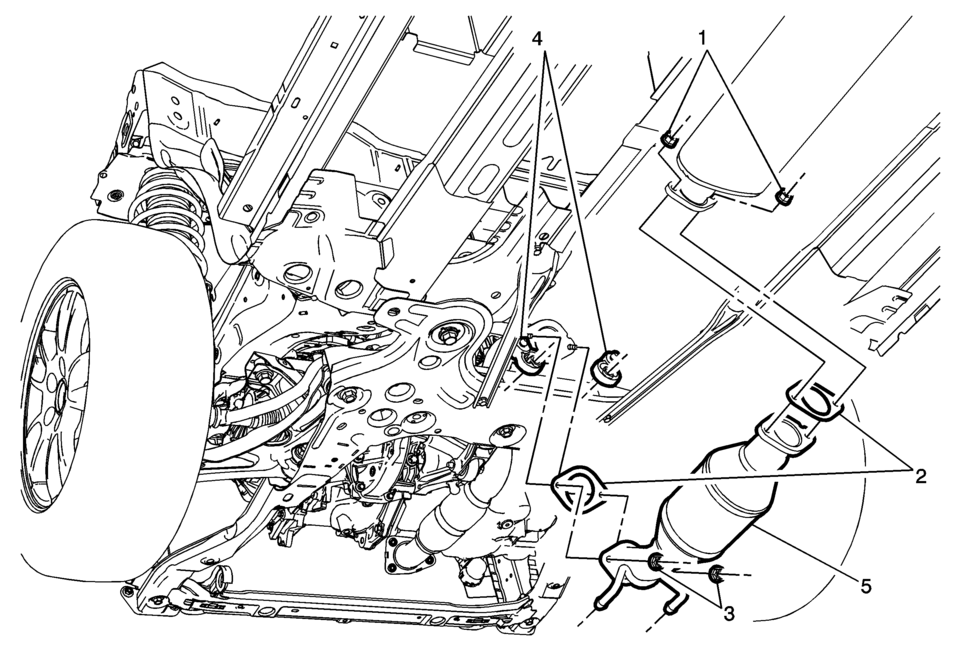

Callout |
Component Name |
|---|---|
|
Warning: Refer to Exhaust Service Warning. Warning: Refer to Safety Glasses Warning. Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle. |
|
|
1 |
Exhaust Muffler Fasteners (Qty: 2) Caution: Refer to Fastener Caution.
17 Y (13 lb ft). |
|
2 |
Exhaust Gasket Note: Replace with NEW gaskets |
|
3 |
Exhaust Front Pipe Fasteners (Qty: 2) Tighten
17 Y (13 lb ft). |
|
4 |
Exhaust Isolators |
|
5 |
Catalytic Converter |
Warm Up Three-Way Catalytic Converter Removal
Disconnect the heated oxygen sensor wiring harness (3) from retainer clip.
Remove the 2 catalytic converter to catalytic converter bracket nuts (4)
and (6).
...
