2-6 Clutch Piston Removal

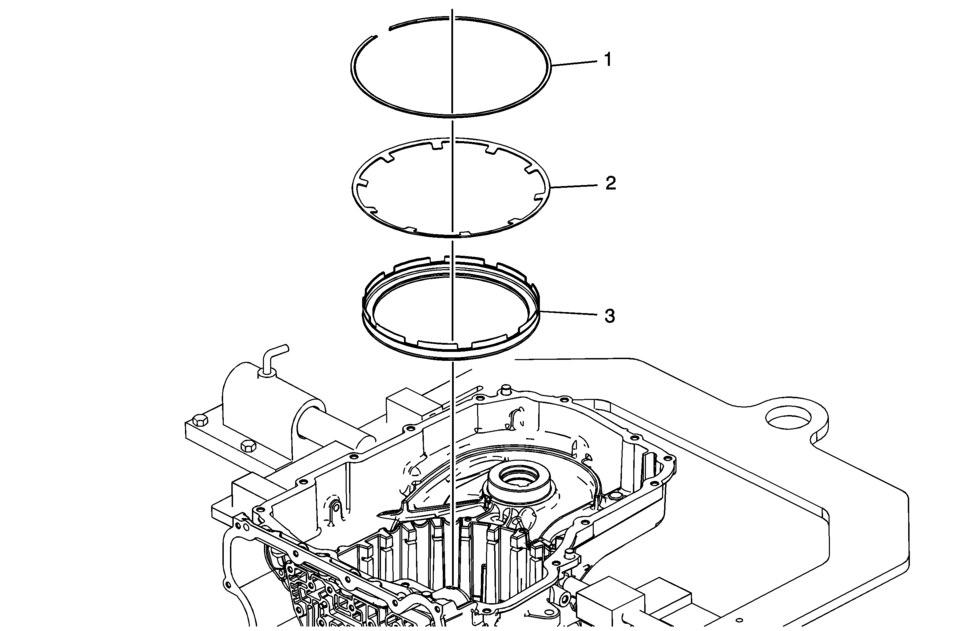

Callout

Component Name

1

2? Clutch Spring Retainer

Special Tool

DT-28585 Snap Ring Remover or equivalent

For equivalent regional tools, refer to Special Tools.

2

2? Clutch Spring

3

2? Clutch Piston Assembly

Note:

  • Use pliers to remove the piston.
  • Inspect the piston seals for damage and/or wear. The piston is reusable.
2-6 Clutch Piston Installation (6T40/45/50)
2-6 Clutch Piston Installation Callout Component Name 1 2? Clutch Piston Assembly Note: Position the ...

3-5-Reverse and 4-5-6 Clutch Fluid Seal Ring Replacement (Gen 1)
3-5-Reverse and 4-5-6 Clutch Fluid Seal Ring Replacement Callout Component Name Special Tools DT-46620 Seal Installer For e ...
