Chevrolet Sonic Repair Manual: Throttle Body Installation

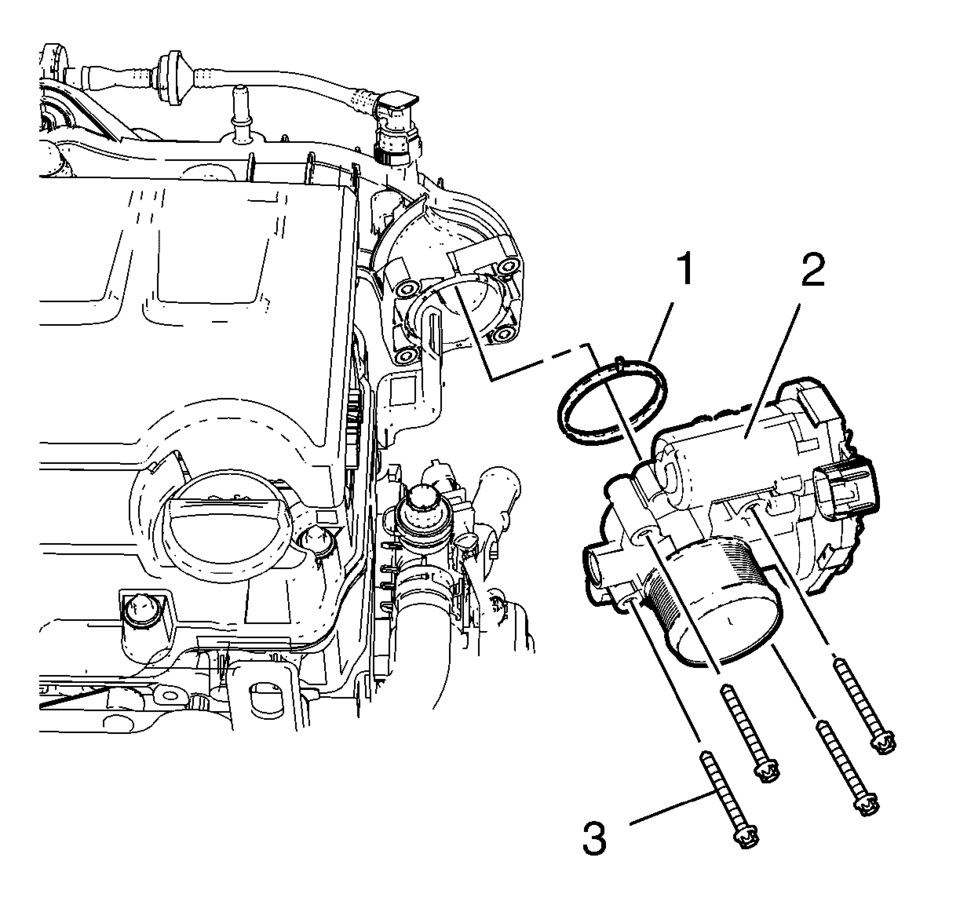

    Install the throttle body (2) and a NEW throttle body
  1. Install the throttle body (2) and a NEW throttle body seal ring (1).
  2. Caution:

    Refer to Fastener Caution.

  3. Install the 4 throttle body bolts (3) and tighten to  8 Y (71 lb in)

    .

Throttle Body Inspection and Cleaning
Note: Over extended time and mileage, deposits may accumulate on the back of the throttle valve plate. The source of the deposit is exhaust gas. Typically these deposits pose no problem. Occa ...

Throttle Body Removal
Remove the 4 throttle body bolts (3). Remove the throttle body (2) and the throttle body seal ring (1). ...
