Camshaft Cover Replacement

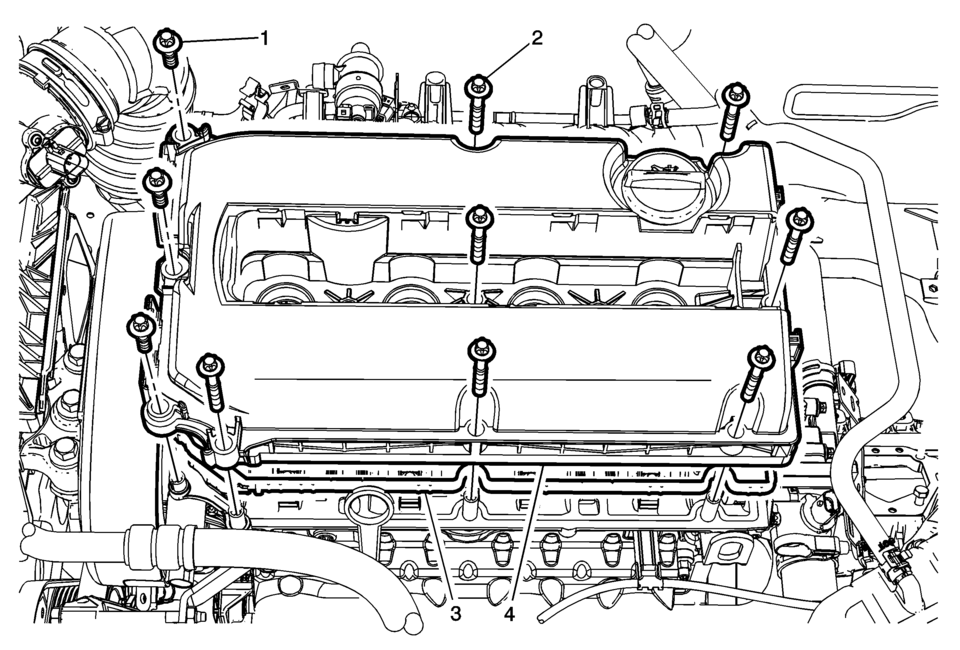

Callout

Component Name

Preliminary Procedures

  1. Remove the ignition coil. Refer to Ignition Coil Replacement.
  2. Remove the PCV hose. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement.

1

Camshaft Cover Fastener (Qty: 3)

Caution:

Refer to Fastener Caution.

Note:

Apply pipe sealant to the center bolt during reinstallation. Refer to Adhesives, Fluids, Lubricants, and Sealers.

Tighten


8 Y (71 lb in)

2

Camshaft Cover Fastener (Qty: 8)

Tighten


8 Y (71 lb in)

3

Camshaft Cover Gasket

Procedure

Do not reuse the camshaft gasket. Also use a new gasket when removing or replacing camshaft cover.

4

Camshaft Cover

Procedure

  1. Remove or reposition the clips as necessary.
  2. Disconnect electrical connector as necessary.
  3. Transfer components as necessary.
Camshaft Cover Removal
Remove the oil level indicator (1). Remove the 15 camshaft cover bolts (1). Remove the camshaft cover (2) and the camshaft cover gasket (3). ...

Camshaft Installation
Special Tools EN-422 Installer For equivalent regional tools, refer to Special Tools. Note: Coat with MoS 2 lubricating paste. Refer to Adhesives, Fluids, Lubricants ...
