Chevrolet Sonic Repair Manual: Engine Block Assemble

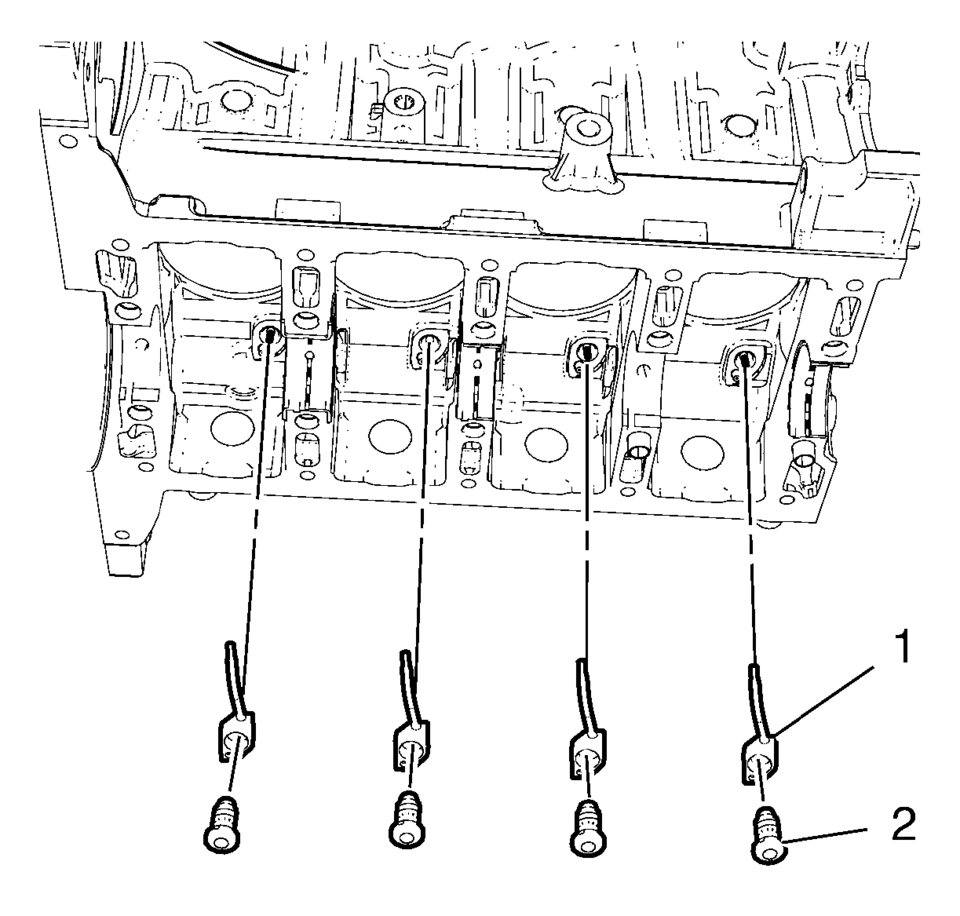

    Install the 4 piston oil nozzles (1).
  1. Install the 4 piston oil nozzles (1).
  2. Caution:

    Refer to Fastener Caution.

  3. Install the 4 piston oil nozzle bolts (2) and tighten to  25 Y (18 lb ft)

    .

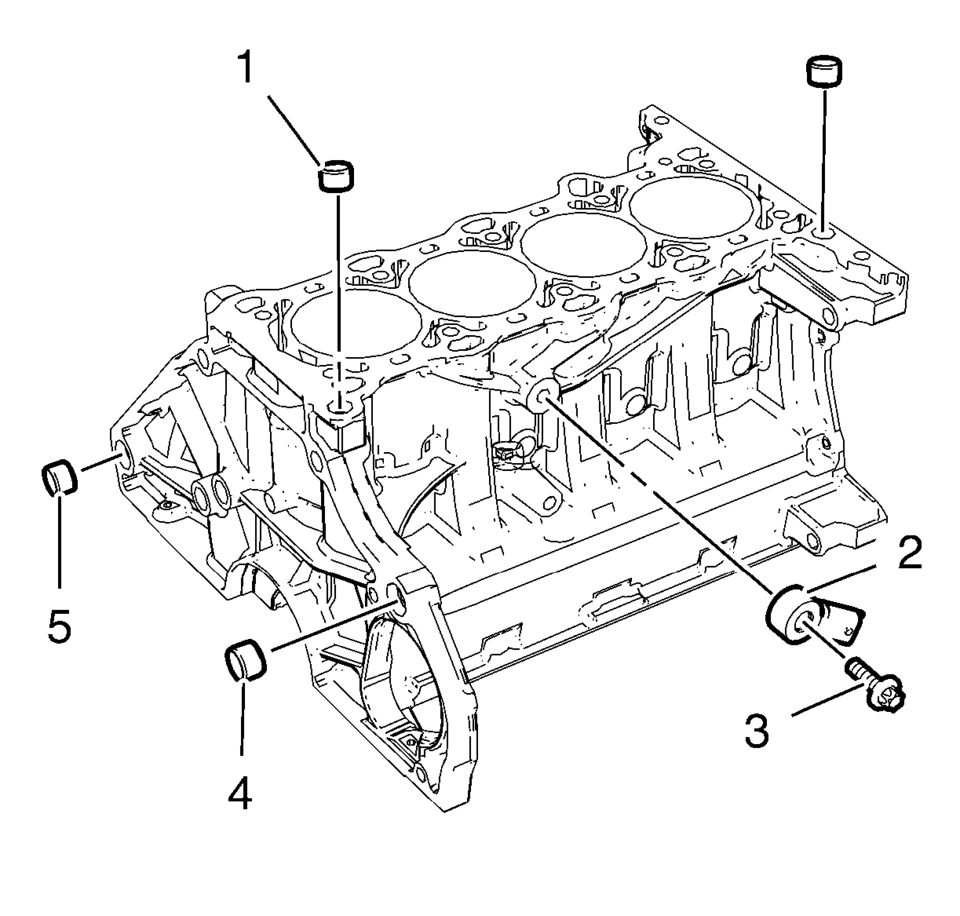

  4. Install the knock sensor (2).
  5. Install the knock sensor bolt (3) and tighten to  20 Y (15 lb ft)

    .

  6. Install the 2 cylinder head guide sleeves (1). Use a rubber mallet.
  7. Install the 2 transmission guide sleeves (4) and (5). Use a rubber mallet.
Engine Block Procedures
...

Engine Block Disassemble
Remove the cylinder head locating (1, 2). Remove the oil pressure switch (1). Remove the knock sensor bolt (2) and the knock sensor (1). Clea ...
