Chevrolet Sonic Repair Manual: Exhaust Heat Shield Replacement

Chevrolet Sonic Repair Manual / Powertrain / Engine / Engine Block / Exhaust2 / Exhaust Heat Shield Replacement



Exhaust Heat Shield Replacement

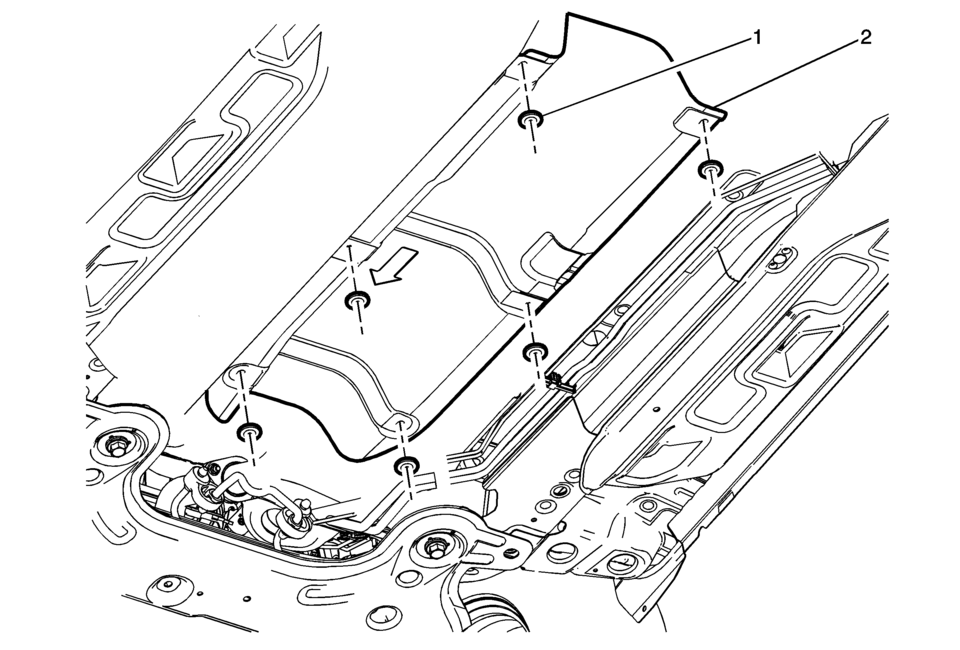

Callout

Component Name

Preliminary Procedure

Disconnect the exhaust system hangers and allow the exhaust system to rest on the rear axle.

1

Exhaust Heat Shield Fastener (Qty: 6)

2

Exhaust Heat Shield

Catalytic Converter Heat Shield Replacement (LUV)
Catalytic Converter Heat Shield Replacement Callout Component Name Warning: Refer to Exhaust Service Warning. ...

Exhaust Manifold Heat Shield Installation
Install the exhaust manifold heat shield (2). Caution: Refer to Fastener Caution. Install the 3 exhaust manifold heat shield bolts (1) and the washers and ...
