Exhaust Rear Muffler Heat Shield Replacement

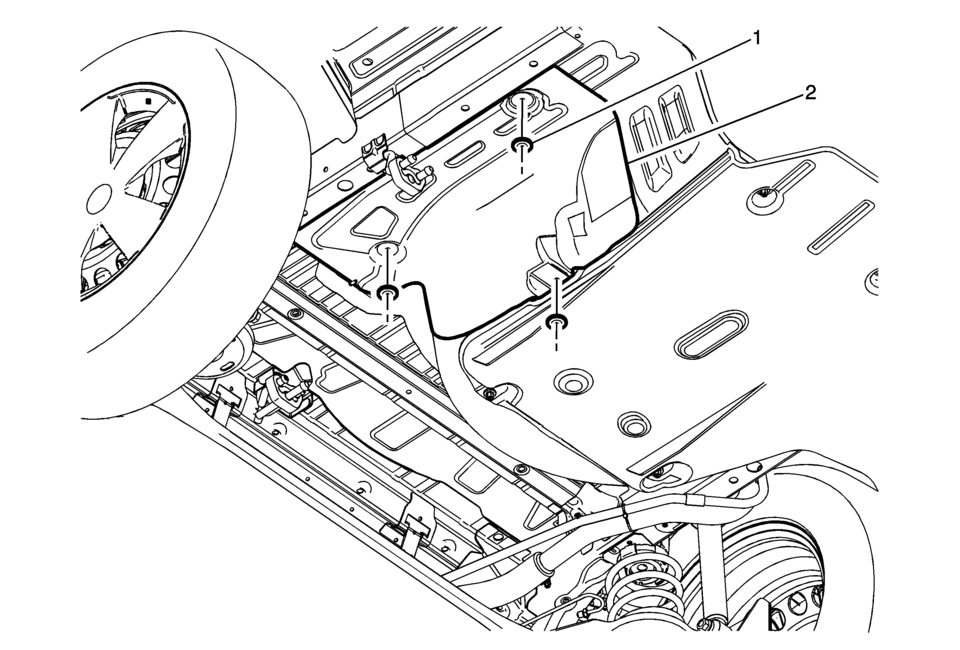

Callout

Component Name

Preliminary Procedure

Disconnect the exhaust system hangers in the rear and allow the exhaust system to rest on the rear axle.

1

Exhaust Heat Shield Rear Muffler Fastener (Qty: 3)

2

Exhaust Heat Shield Rear Muffler
