Callout |
Component Name |
|---|---|
|
Preliminary Procedure

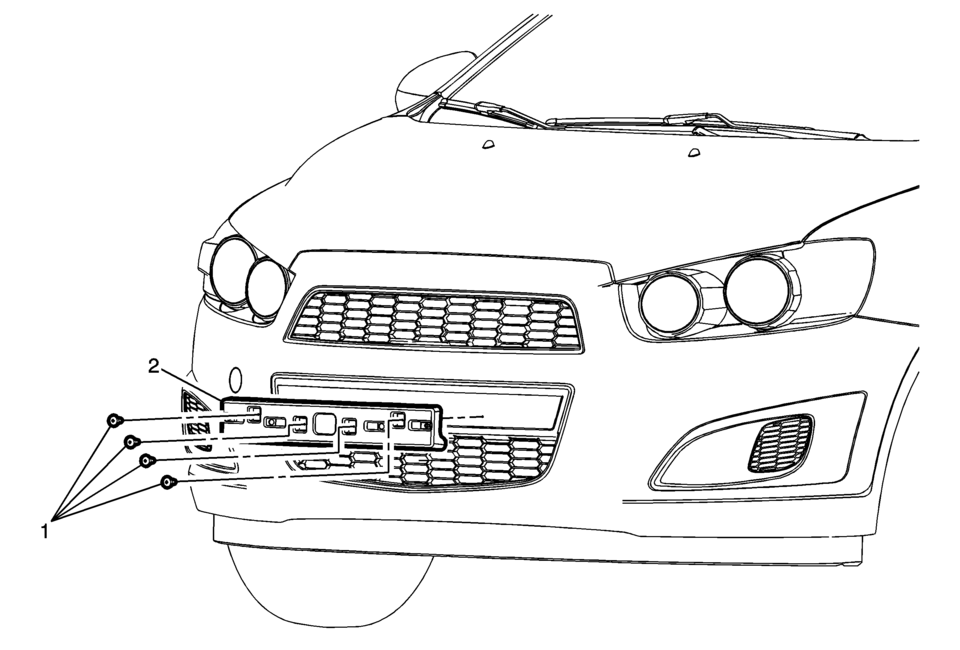

Remove the front license plate if equipped. |
|
|
1 |
Front License Plate Bracket Screw (Qty:?€‰4) Caution: Refer to Fastener Caution.
1.5?€‰Y (13?€‰lb?€‰in) |
|
2 |
Front License Plate Bracket |
Engine Cover ReplacementHeater Inlet Hose Replacement (LDE, LUW)
Special Tools
BO-38185 Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Drain the cooling system. Refer to Cooling System Draining and Filling.
Disengage the heater inlet hose quick connect clip (1) at the heater
...
Crankshaft Rear Oil Seal Replacement
Special Tools
EN-658 Rear Main Seal Installer
For equivalent regional tools, refer to Special Tools.
Removal Procedure
If equipped with automatic transmission, remove the flex plate. Refer
to Automatic Transmission Flex Plate Replacement.
If equipped with a manual transmis ...
Camshaft Timing Chain Inspection
Special Tools
EN-952 Fixing Pin
EN-953-A Fixing Tool
EN-49977-100 Transmitter Disc Fixation
For equivalent regional tools, refer to Special Tools.
Remove the ignition coil. Refer to Ignition Coil Replacement.
Remove the camshaft cover. Refer to Camshaft Cover Replacement.
...
