Front Wheelhouse Liner Inner Front Extension Replacement

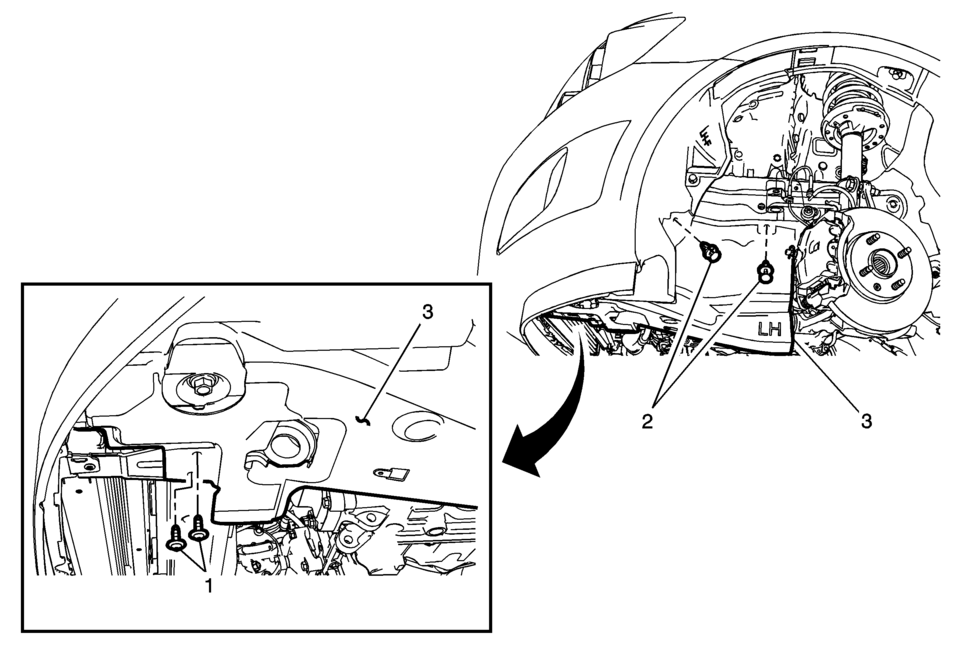

Callout

Component Name

Preliminary Procedure

Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation.

1

Front Wheelhouse Liner Inner Front Extension Screw (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


3?€‰Y (27?€‰lb?€‰in)

2

Front Wheelhouse Liner Inner Front Extension Push-In Retainer (Qty:?€‰2)

3

Front Wheelhouse Liner Inner Front Extension
