Chevrolet Sonic Repair Manual: Headlamp Switch Replacement



Headlamp Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement

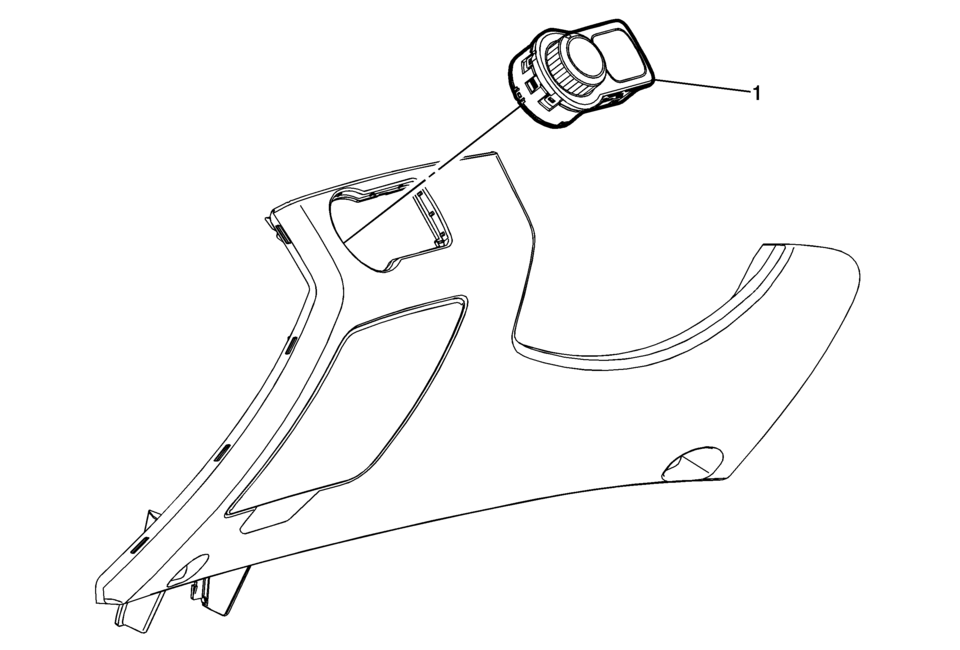

1

Headlamp Switch

Procedure

  1. Gently depress tabs to remove the switch assembly from the instrument panel lower cover.
  2. Disconnect the electrical connector.
