Chevrolet Sonic Repair Manual: Liftgate Side Applique Replacement (Hatchback)

Chevrolet Sonic Repair Manual / Body / Doors and Enclosures / Trunklid/Tailgate/Cargo Doors / Liftgate Side Applique Replacement (Hatchback)



Liftgate Side Applique Replacement

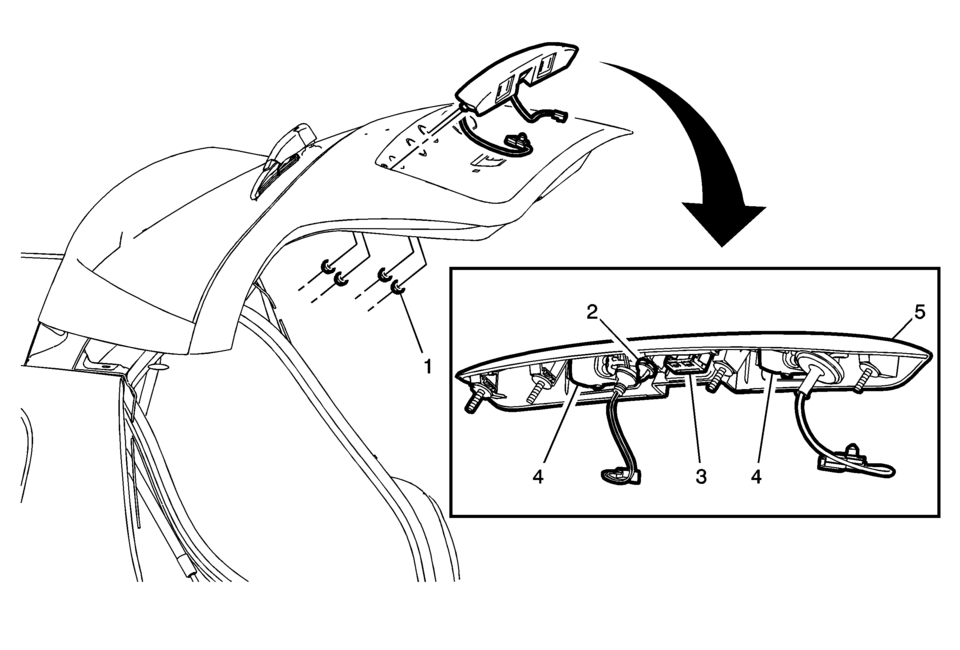

Callout

Component Name

Preliminary Procedure

  1. Open and support the rear liftgate assembly.
  2. Remove the liftgate trim finish panel. Refer to Liftgate Trim Finish Panel Replacement.
  3. Disconnect the electrical connectors.
  4. Remove the four nuts securing the liftgate side applique to the rear liftgate outer panel.
  5. Release the liftgate side applique center retainer from the liftgate panel.

1

Liftgate Side Applique Nut (Qty:?€‰4)

Caution:

Refer to Fastener Caution.

Tighten


5?€‰Y (44?€‰lb?€‰in)

2

Liftgate Side Applique Retainer

3

Liftgate Release Switch

Procedure

Remove the liftgate release switch. Refer to Liftgate Release Switch Replacement

4

Rear License Plate Lamp (Qty:?€‰2)

Procedure

Remove the rear license plate lamps. Refer to Rear License Plate Lamp Replacement.

5

Liftgate Side Applique

Liftgate Replacement
