Radio Windshield Side Garnish Molding Speaker Replacement

Callout

Component Name

Preliminary Procedure

Remove the windshield side garnish molding. Refer to Windshield Side Garnish Molding Replacement.

1

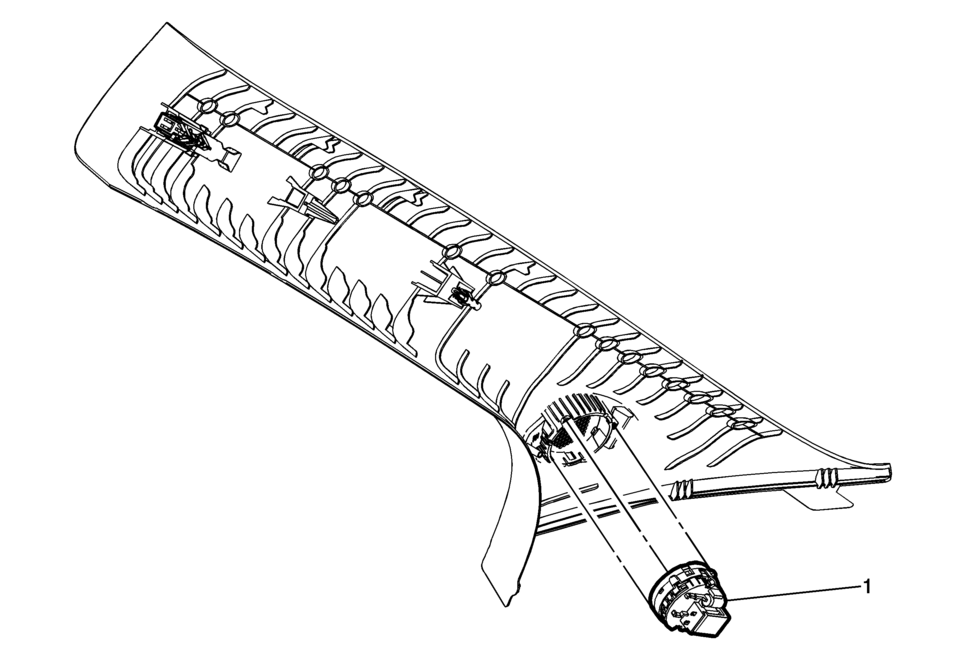

Radio Windshield Side Garnish Molding Speaker

Procedure

Depress tabs to remove speaker.
