Rear Compartment Lid Hinge Torque Rod Replacement

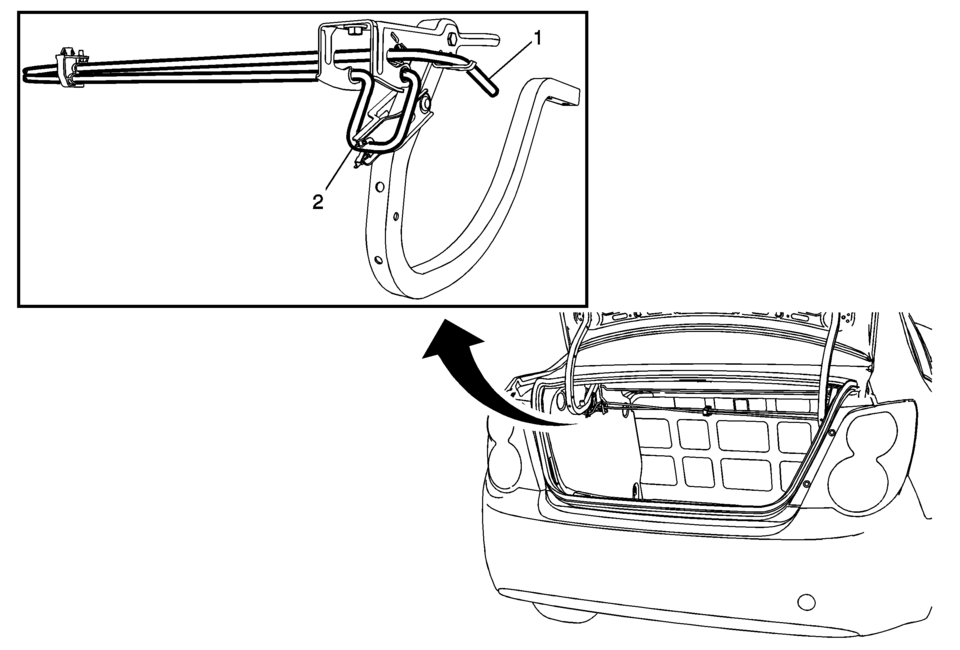

Callout

Component Name

Warning:

Refer to Hood Hold-Open Device Warning.

Preliminary Procedure

Open and support the rear compartment lid.

Special Tools

BO-125 Torque Rod Lifter

For equivalent regional tools, refer to Special Tools.

1

Rear Compartment Lid Hinge Torque Rod– Right Side

Note:

Only use the special tool to remove and install the rear compartment lid hinge torque rod.

2

Rear Compartment Lid Hinge Torque Rod– Left Side

Note:

Only use the special tool to remove and install the rear compartment lid hinge torque rod.
