Chevrolet Sonic Repair Manual: Water Pump Replacement (LUV)



Water Pump Replacement

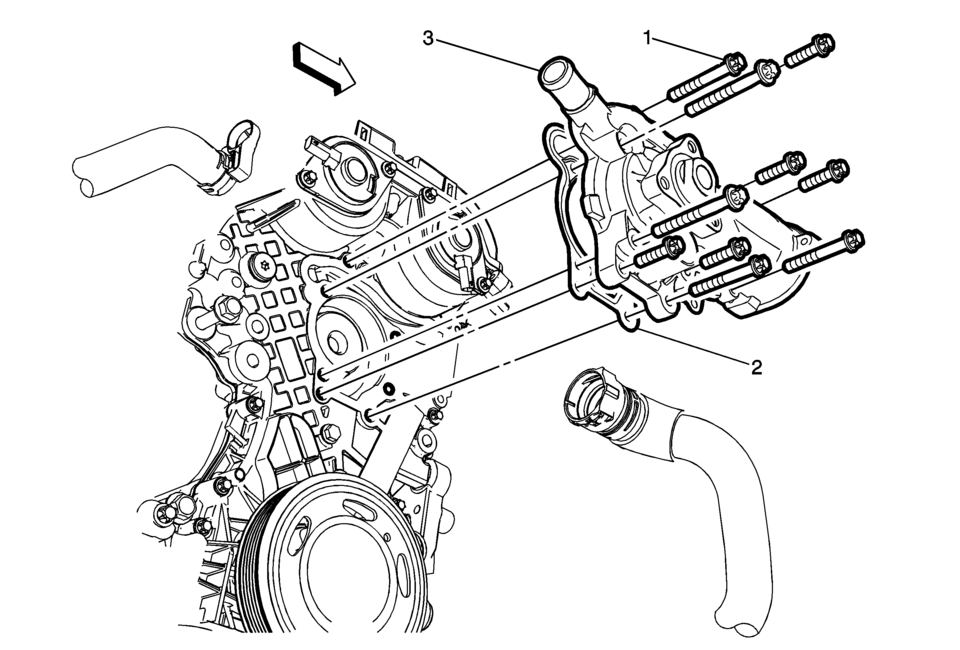

Callout

Component Name

Preliminary Procedure

  1. Drain the cooling system. Refer to Cooling System Draining and Filling.
  2. Remove the water inlet. Refer to Water Inlet Replacement.
  3. Remove the water pump pulley. Refer to Water Pump Pulley Replacement.
  4. Remove the heater outlet hose. Refer to Heater Outlet Hose Replacement.

1

Water Pump Bolt (Qty: 10)

Caution:

Refer to Fastener Caution.

Tighten


8 Y (71 lb in)

2

Water Pump Gasket

3

Water Pump

Procedure

  1. Clean the sealing surfaces.
  2. Replace the water pump gasket with a NEW gasket.
  3. Remember the location of the short and long bolts when removing.
Water Pump Removal
Remove the 5 short water pump bolts (4) and the 5 long water pump bolts (3). Remove the water pump (2). Remove the water pump gasket (1). ...
