Callout |
Component Name |
|---|---|
|
1 |

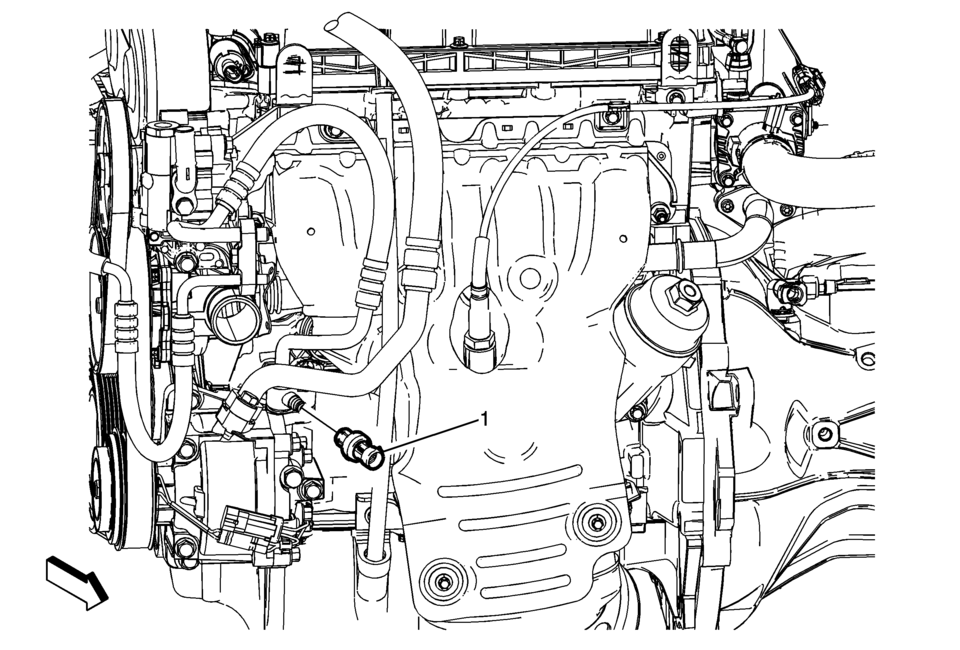

Air Conditioning Refrigerant Pressure Sensor Caution: Refer to Fastener Caution.
6 Y (53 lb in) |
Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (1.4L)
Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (LUV)Instrument Panel Fuse Block Access Hole Cover Replacement (Without AAL)
Instrument Panel Fuse Block Access Hole Cover Replacement
Callout
Component Name
1
Instrument Panel Fuse Block Access Hole Cover
Procedure
Grasp the lower edge of the fuse block cover and pull outward disengaging ...
Hydraulic Brake System Description and Operation
System Component Description
The hydraulic brake system consists of the following:
Hydraulic Brake Master Cylinder Reservoir
Contains a supply of brake fluid for the hydraulic brake system.
Hydraulic Brake Master Cylinder
Converts mechanical input force into hydr ...
Electrical Center Identification Views
Figure 1:
X70A Relay Block - Underhood Label (LUV)
Figure 2:
X70A Relay Block - Underhood, Top View (LUV)
Figure 3:
X50A Fuse Block - Underhood Label (LUV)
Figure 4:
X50A Fuse Block - Underhood Label (LUW)
...
