Chevrolet Sonic Repair Manual: Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (LUV)
|

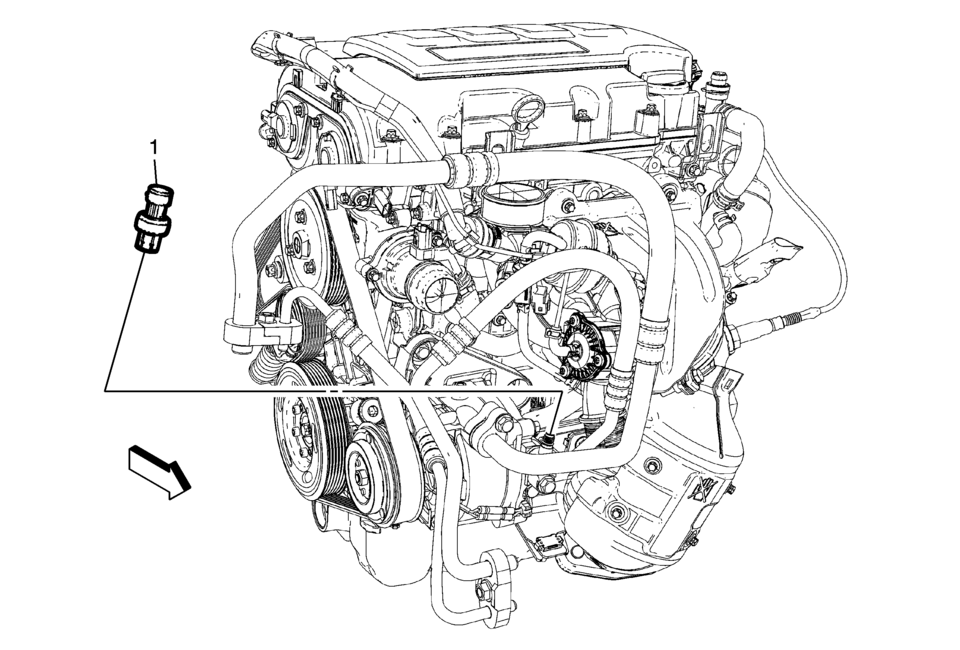

Callout |
Component Name |
|---|---|
|
1 |
Air Conditioning Refrigerant Pressure Sensor Caution: Refer to Fastener Caution.
6 Y (54 lb in) |
