Air Conditioning Condenser Replacement

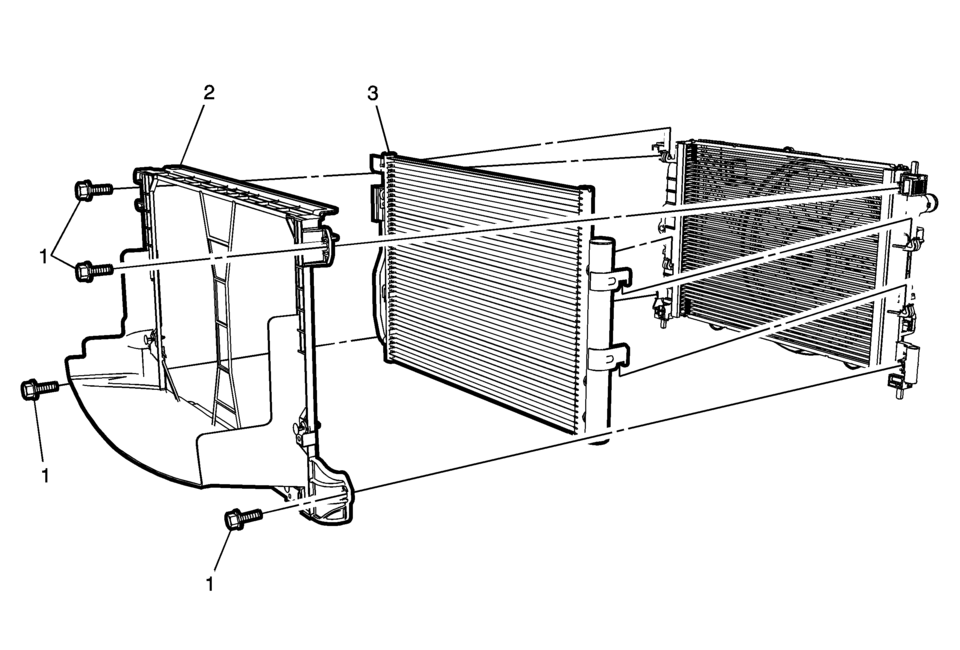

Callout

Component Name

Preliminary Procedure

  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging.
  2. Remove front bumper fascia. Refer to Front Bumper Fascia Replacement.
  3. Remove the air conditioning compressor and condenser hose from the condenser. Refer to Air Conditioning Compressor and Condenser Hose Replacement.

1

Air Conditioning Condenser Baffel Bolt (Qty: 4)

Caution:

Refer to Fastener Caution

Tighten


10 Y (89 lb in)

2

Air Conditioning Condenser Baffel

3

Air Conditioning Condenser

Procedure

Unclip the air conditioning condenser from the radiator assembly.
