Chevrolet Sonic Repair Manual: Air Conditioning Refrigerant Service Valve Core Replacement

Chevrolet Sonic Repair Manual / HVAC / Cooling / Air Conditioning Refrigerant Service Valve Core Replacement

Special Tools

For equivalent regional tools, refer to Special Tools.

Removal Procedure
  1. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging.

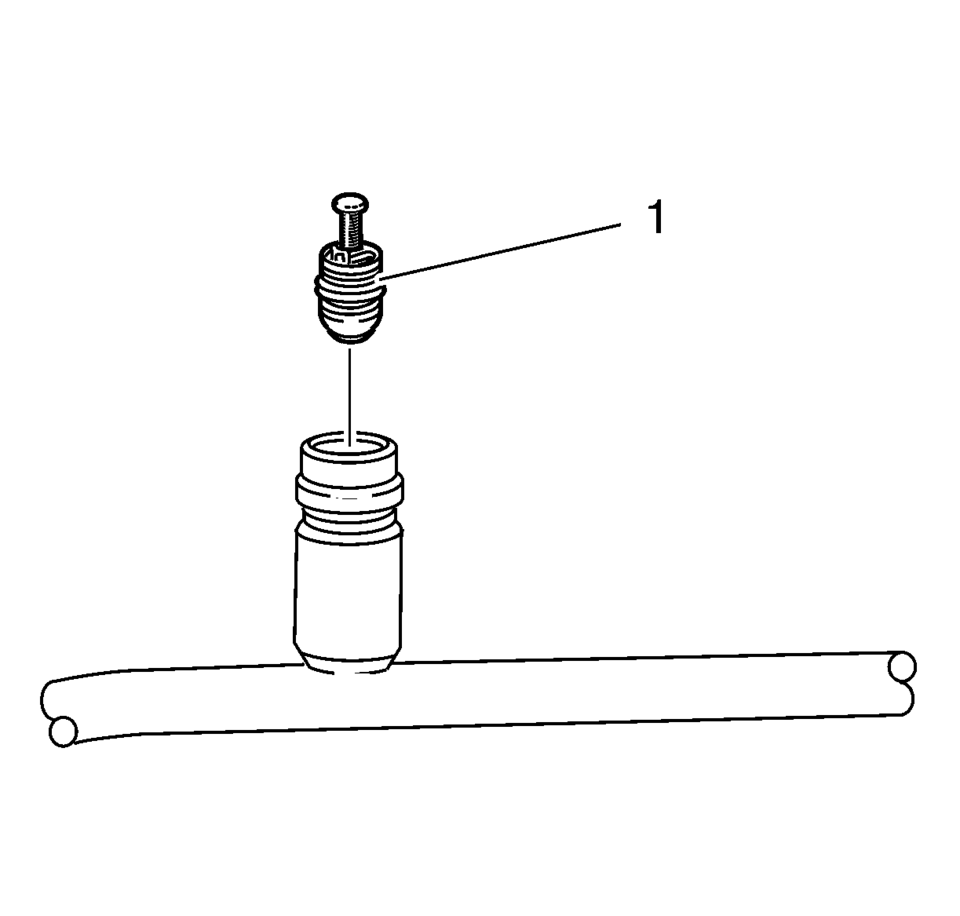

  2. Remove the service port valve core (1) using the GE-46246 remover .
Installation Procedure


    Caution:

    Refer to Fastener Caution.

  1. Install the service port valve core (1) using the GE-46246 remover .
  2. Evacuate and charge the refrigerant system. Refer to Refrigerant Recovery and Recharging.
  3. Leak test the fittings using the GE-39400-A detector .
