Chevrolet Sonic Repair Manual: Vehicle, Engine and Transmission ID and VIN Location, Derivative and Usage

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Transmission Oil Cooler / Transmission Unit / Vehicle, Engine and Transmission ID and VIN Location, Derivative and Usage


The vehicle identification number (VIN) plate is the legal identifier of the

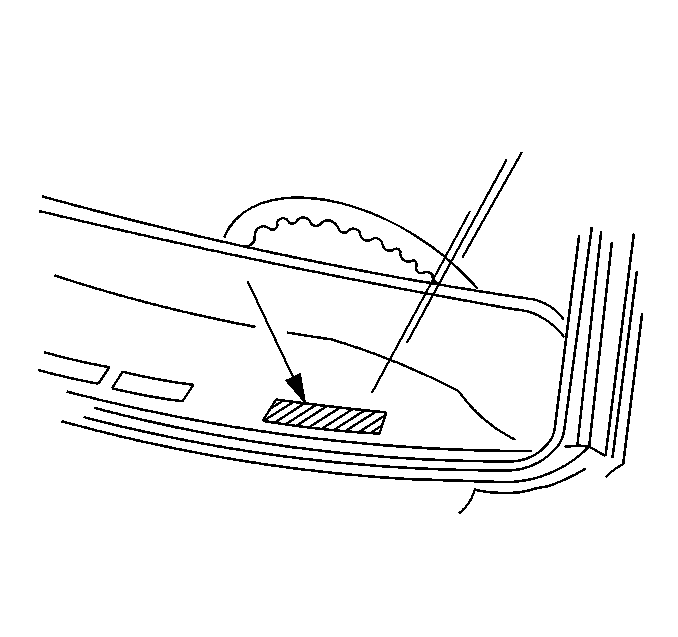

The vehicle identification number (VIN) plate is the legal identifier of the vehicle. The VIN plate is located on the upper left corner of the instrument panel (I/P) and can be seen through the windshield from the outside of the vehicle:

Vehicle, Engine and Transmission ID and VIN Location, Derivative and Usage

Position

Definition

Character

Description

1

Country of Origin

1

United States

3

Mexico

2

Manufacturer

G

General Motors

3

Make

1

Chevrolet

4?

Vehicle Line/Series

A

Chevrolet Sonic LS (Automatic)

B

Chevrolet Sonic LS (Manual)

C

Chevrolet Sonic LT (Automatic)

D

Chevrolet Sonic LT (Manual)

E

Chevrolet Sonic LTZ (Automatic)

F

Chevrolet Sonic LTZ (Manual)

6

Body Style

5

69 − Sedan, 4-Door, 4 Window, Notchback

6

48 − Sedan, 4-Door, 4 Window, Hatchback

7

Restraint System

A

Active Manual Belts, Airbag Delete

C

Active Manual Belts, Airbag − Driver & Passenger − Front (1st row)

D

Active Manual Belts, Airbag − Driver & Passenger − Front (1st row), & Front Seat Side (1st row)

E

Active Manual Belts, Airbags − Driver & Passenger − Front (1st row), & Front Seat Side (1st row), Roof Side (all seating rows)

S

Active Manual Belts, Airbags ?Driver & Passenger Front (1st row), Front Seat Side (1st row) & Rear Seat Side (2nd row), Roof Side (all seating rows), Driver & Passenger knee (1st row)

8

Engine Type

B

RPO LUV Engine ?Gas, 4 Cylinder, 1.4L, MFI, DOHC, Turbo, VVT, Alum, E85 Max

C

RPO LDE Engine ?Gas, 4 Cylinder, 1.6L, MFI, DOHC, VVT, Variable Camshaft Phasing, Variable Intake Module (VIM)

D

RPO LFJ − Gas, 4 Cylinder, 1.6L MFI, E100 Max

G

RPO LWE Engine ?Gas, 4 Cylinder, 1.8L, MFI, DOHC, VVT, 103 KW

H

RPO LUW Engine ?Gas/Ethanol, 4 Cylinder, 1.8L, MFI, 103KW, DOHC, E85

9

Check Digit

X

Calculated by POMS

10

Model Year

D

2013

11

Plant Location

4

Orion

S

Ramos Arizpe

12?7

Plant Sequence Number

?/p>

Plant Sequence Number

1.6L (LDE/LFJ) Engine ID and VIN Derivative Location

Refer to Engine Identification.

6T30/6T40/6T45/6T50 (MH9) Transmission ID and VIN Derivative Location

Refer to Transmission Identification Information.

M20-6 (MZ7) Transmission ID and VIN Derivative Location

Refer to Transmission Identification Information.
