Nissan Armada 2025-2026 Owner's Manual: Basic information

Nissan Armada 2025-2026 Owner's Manual / Starting and driving / Parking brake / Basic information

WARNING

Never operate your Nissan Armada while the parking brake is engaged. Driving with the parking brake applied can cause overheating, reduced braking performance, and eventual brake failure, significantly increasing the risk of an accident.
Do not release the parking brake of your Nissan Armada from outside the vehicle. If the vehicle begins to move, you will not be able to apply the foot brake, which may result in loss of control and serious injury.
Always use the parking brake when parking your Nissan Armada. Do not rely solely on the transmission shift position to hold the vehicle in place.
Never leave children, individuals requiring assistance, or pets unattended inside your Nissan Armada. Interior temperatures can rise rapidly, especially in warm weather, creating dangerous and potentially fatal conditions.
Always ensure the vehicle is safely secured and all occupants are supervised appropriately.

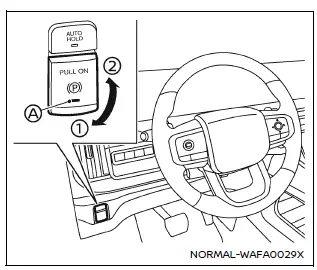

Nissan Armada electronic parking brake switch and indicator illustration

Release
Apply
Indicator light

The Nissan Armada is equipped with an advanced electronic parking brake system that can be applied or released either automatically or manually using the parking brake switch.

Automatic operation

The electronic parking brake in the Nissan Armada will automatically release when the vehicle begins to move, provided the following conditions are met: The engine is running. The transmission ...
