Nissan Armada 2025-2026 Owner's Manual: Basic information
WARNING
Failure to carefully follow all warnings and operating instructions related to the I-FCW system in the Nissan Armada may lead to serious injury or even fatal accidents.
- The Intelligent Forward Collision Warning system in the Nissan Armada is designed to provide early alerts before a potential collision occurs. However, it does not actively prevent collisions. The driver must remain attentive, maintain full control of the vehicle, and drive responsibly at all times.
The I-FCW system in the Nissan Armada enhances driver awareness by monitoring traffic conditions ahead. It is capable of detecting sudden braking behavior not only from the vehicle directly in front, but also from a second vehicle further ahead within the same lane, helping the driver react more quickly to unexpected situations.
Example

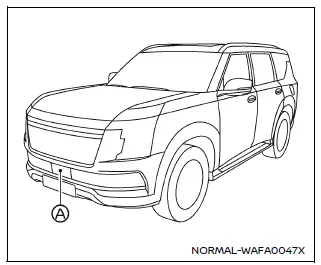

The Nissan Armada I-FCW system utilizes a front-mounted radar sensor (A), positioned at the front of the vehicle, to continuously measure distance and relative speed of vehicles ahead. This advanced detection capability contributes to improved anticipation of potential hazards.

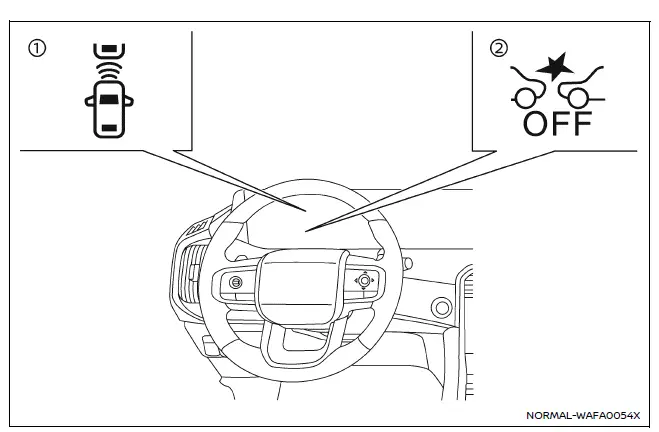

- Vehicle ahead detection indicator (displayed in the Nissan Armada vehicle information screen)
- Automatic Emergency Braking (AEB) system OFF warning light (located on the instrument panel)
I-FCW system operation
The Nissan Armada I-FCW system becomes active at speeds above approximately 3
MPH (5 km/h), ensuring functionality during most driving scenarios.
When a potential forward collision risk is dete ...
