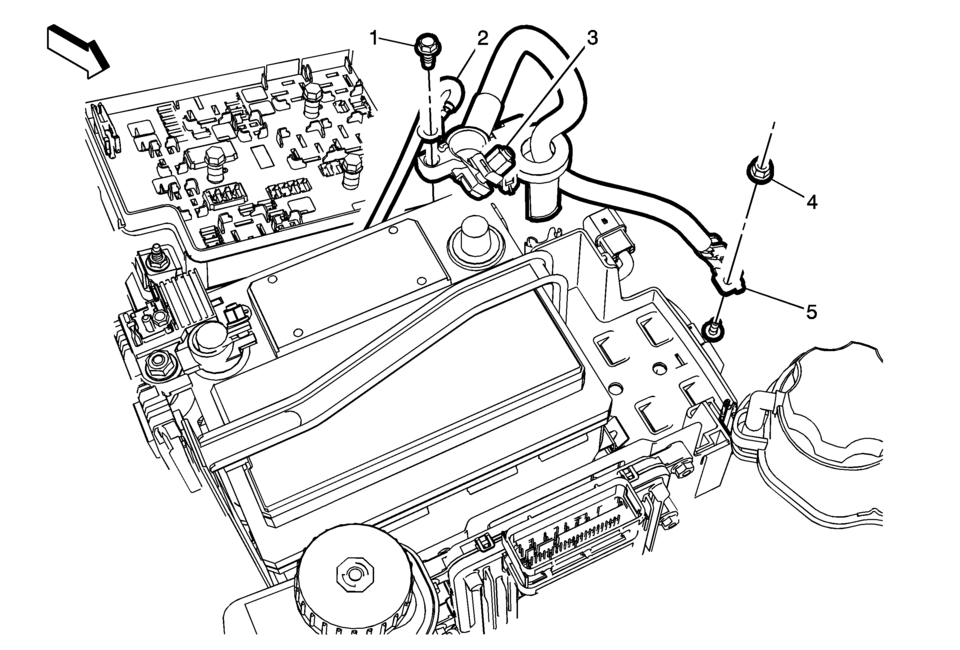

Callout |
Component Name |
---|---|
Preliminary Procedures
|
|
1 |
Body Harness Terminal Bolt Caution: Refer to Fastener Caution.
9 Y (80 lb in) |
2 |
Body Harness Terminal |
3 |
Battery Negative Post Clamp Nut Tighten
9 Y (80 lb in) |
4 |
Battery Negative Frame Ground Nut Tighten
22 Y (16 lb ft) |
5 |
Battery Negative Cable Procedure
Transfer the current sensor, noting the location and direction on the cable. |
Tire Terminology and Definitions
Air Pressure
The amount of air inside the tire pressing outward on each square inch
of the tire. Air pressure is expressed in kPa (kilopascal) or psi (pounds per
square inch).
Accessory Weight
The combined weight of optional accessories. Some examples of optional
access ...
Throttle Body Assembly Replacement
Removal Procedure
Disconnect the throttle body wiring harness connector.
Remove the charge air cooler outlet air hose from
the throttle body. Refer to Charge Air Cooler Outlet
Air Hose Replacement.
Remove the 4 throttle body fasteners (3).
Remo ...
Fluid Cooler Inlet Hose Replacement
Removal Procedure
Remove the battery tray. Refer to
Battery Tray Replacement
Remove the front bumper fascia opening lower cover.
Refer to Front Bumper Fascia Opening Lower Cover
Replacement
Remove the front wheelhouse liner inner front extension.
Refer to Front Wh ...
