Chevrolet Sonic Repair Manual: Battery Positive Cable Replacement

Chevrolet Sonic Repair Manual / Powertrain / Engine / General / Battery Positive Cable Replacement

Removal Procedure
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection.
  2. Remove the underhood fuse block cover.

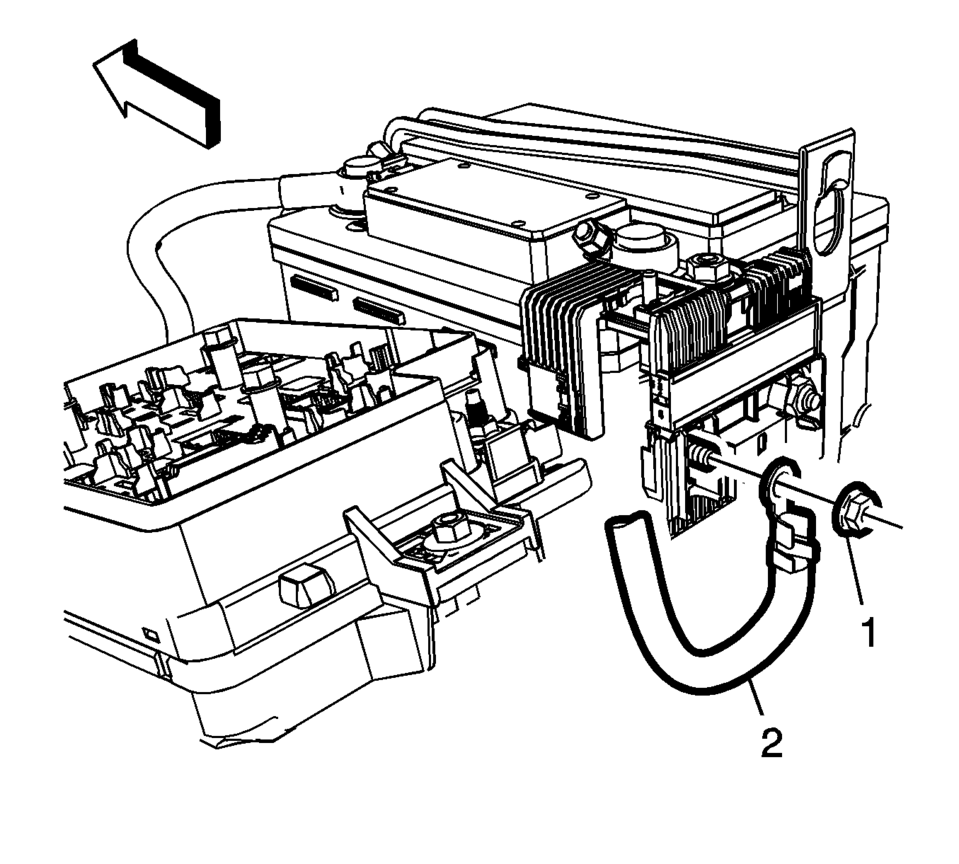

  3. Remove the battery positive nut (1) and the battery positive cable (2), from the underhood fuse block.

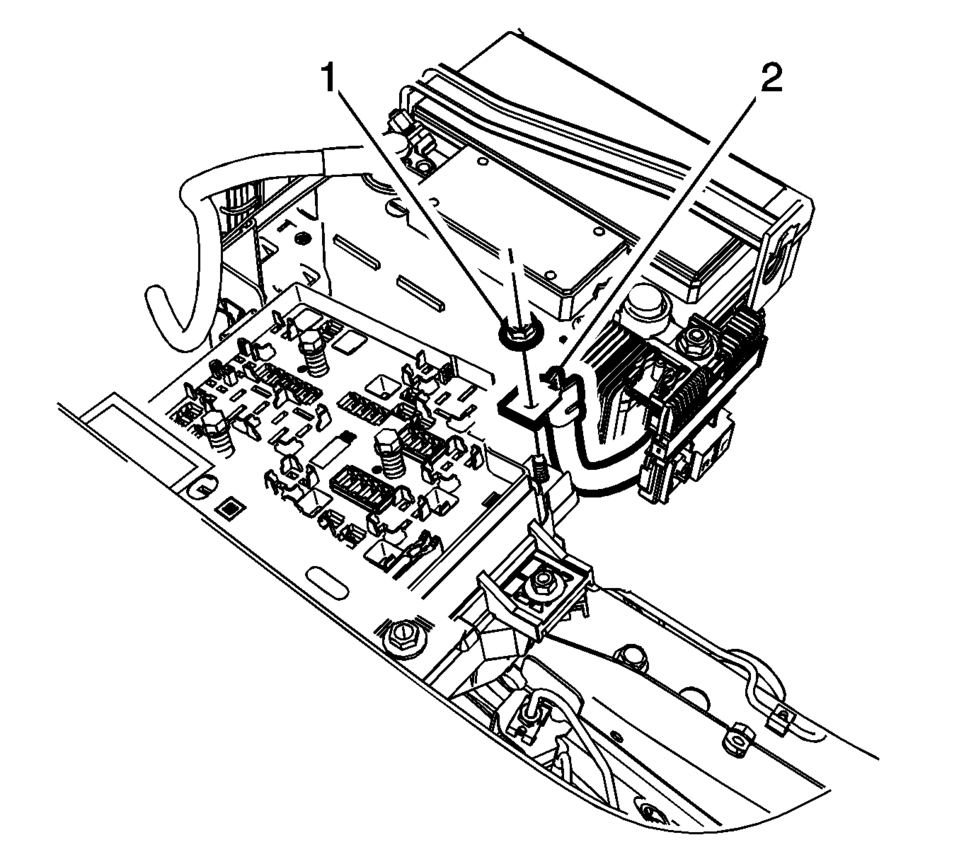

  4. Remove the battery positive cable nut (1) from the battery positive cable junction block.
  5. Remove the battery positive cable (2) from the vehicle.
Installation Procedure


    Caution:

    Refer to Fastener Caution.

  1. Install the battery positive cable (2) to the battery positive cable junction block and tighten nut (1) to 7 Y (62 lb in)

    .



  2. Install the battery positive cable (2) to the underhood fuse block and tighten nut (1) to 7 Y (62 lb in)

    .

  3. Install the underhood fuse block cover.
  4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection.
