Chevrolet Sonic Repair Manual: Input Speed Sensor Replacement
- Removal Procedure
-
- Remove the control solenoid valve and transmission control module assembly. Refer to Control Solenoid Valve and Transmission Control Module Assembly Replacement.

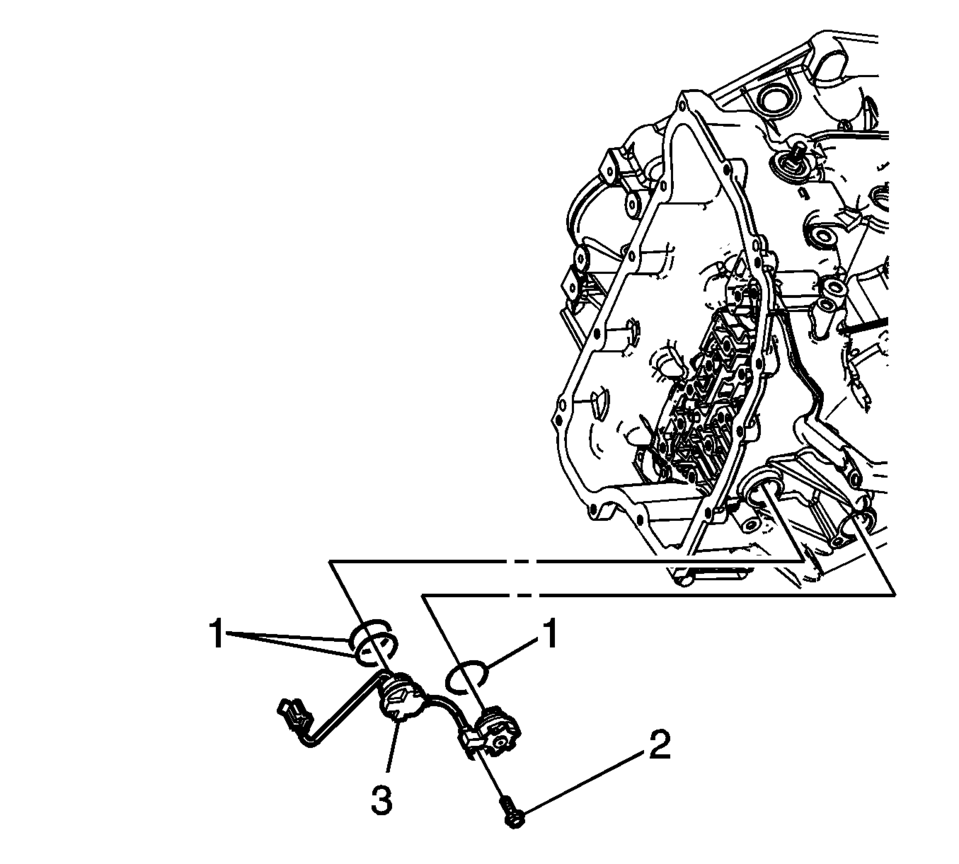

- Remove the input speed sensor bolt (2) M6 x 23.
- Unlock the 2 retaining tabs inside the transmission housing.
- Remove the input speed sensor (3).
- Remove the 3 input speed sensor seals (1).
- Installation Procedure
-
- Install the 3 input speed sensor seals (1).
- Install the input speed sensor (3).
- Verify that the retaining tabs are locked completely.
- Install the input speed sensor bolt (2) M6 x 23 and
tighten to 9 Y (80 lb in)
.
- Install the control solenoid valve and transmission control module assembly. Refer to Control Solenoid Valve and Transmission Control Module Assembly Replacement.
- Perform the transmission adaptive values learn procedure. Refer to Transmission Adaptive Values Learn.
Caution:
Refer to Fastener Caution.
Input Shaft Support Replacement (Gen 2)
Input Shaft Support Replacement
Callout
Component Name
1
3-5 Reverse and 4-5-6 Clutch Fluid Seals (Qty: 3)
...
Input and Output Speed Sensor Installation
Input and Output Speed Sensor Installation
Callout
Component Name
1
Input Speed Sensor Assembly Seals
2 ...
