Chevrolet Sonic Repair Manual: Brake Pedal Position Sensor Replacement
- Removal Procedure
-
- Remove the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement.
- Disconnect the brake pedal position sensor electrical connector.

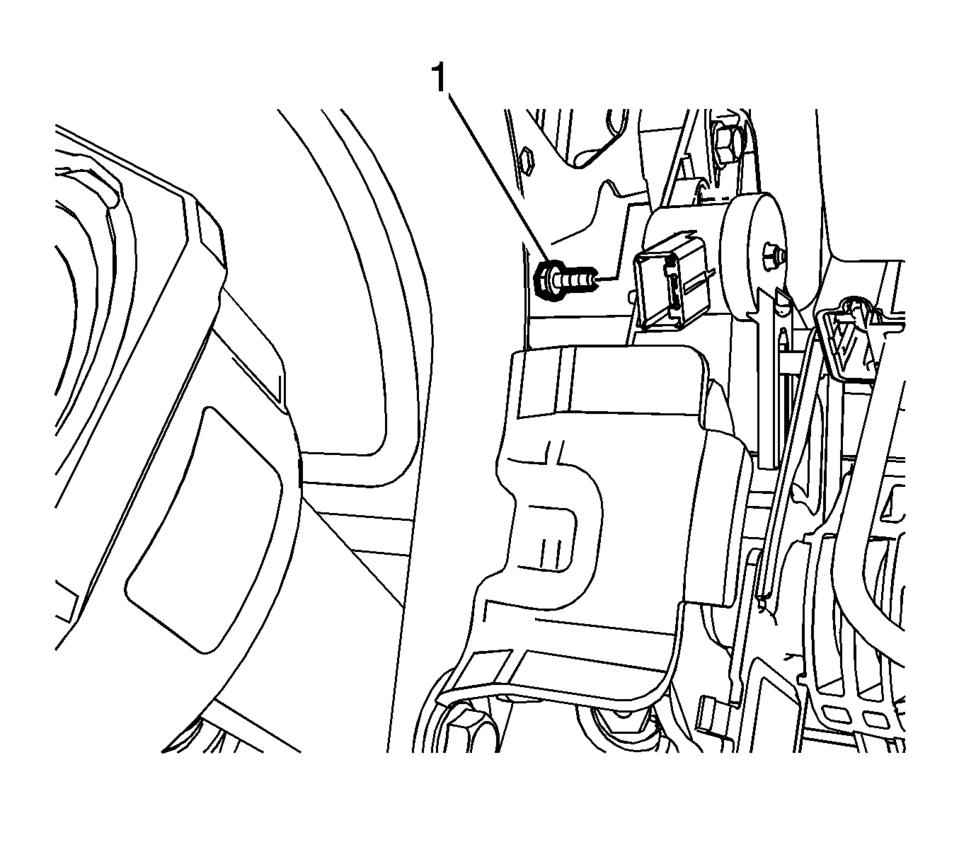

- Remove the brake pedal position sensor bolt (1).
- Remove the brake pedal position sensor.
- Installation Procedure
-
- Install the brake pedal position sensor to the brake pedal bracket.
- Install the brake pedal position sensor bolt (1) and tighten to
3 Y (27 lb in)
.
- Connect the brake pedal position sensor electrical connector.
- Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration.
- Install the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement.
Note:
Ensure the fork of the brake pedal position sensor is positioned over the brake pedal post.
Caution:
Refer to Fastener Caution.
