Chevrolet Sonic Repair Manual: Control Valve Body Assembly Disassemble (Gen 1)



Control Valve Body Assembly Disassemble

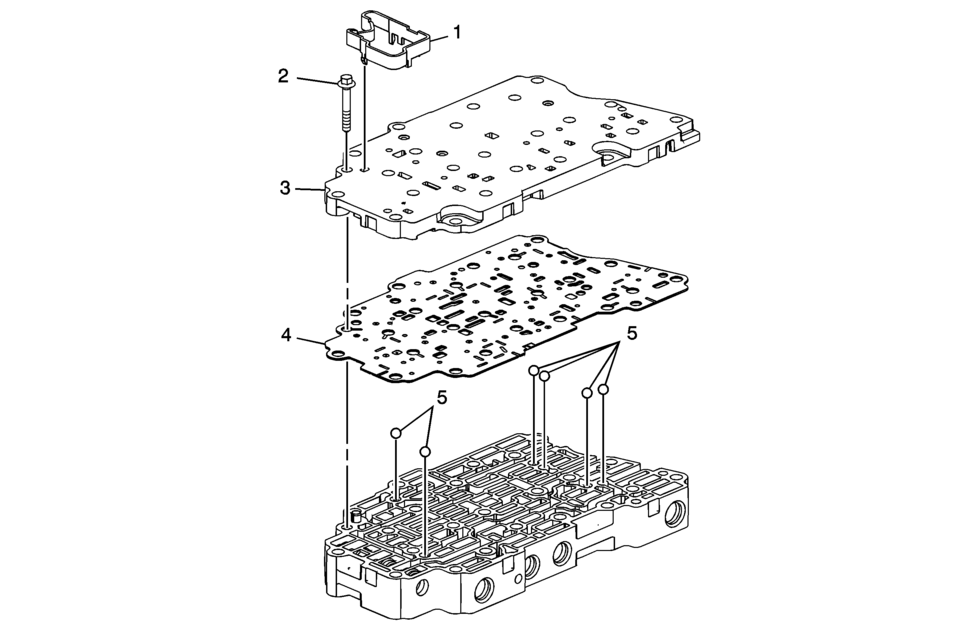

Callout

Component Name

1

Control Solenoid Valve Support

2

Control Valve Body Bolt M5 x 40.5 (Qty: 1)

3

Valve Channel Plate

Note:

Inspect the channel plate bolt pass through holes for damage or brinelling. Any damage will cause incorrect pressure switch operation. Replace as necessary.

4

Control Valve Channel Plate Spacer Plate Assembly

5

Valve Body Ball Check Valves (Qty: 6)
