Chevrolet Sonic Repair Manual: Control Valve Body Assembly Assemble (Gen 2)



Control Valve Body Assembly Assemble

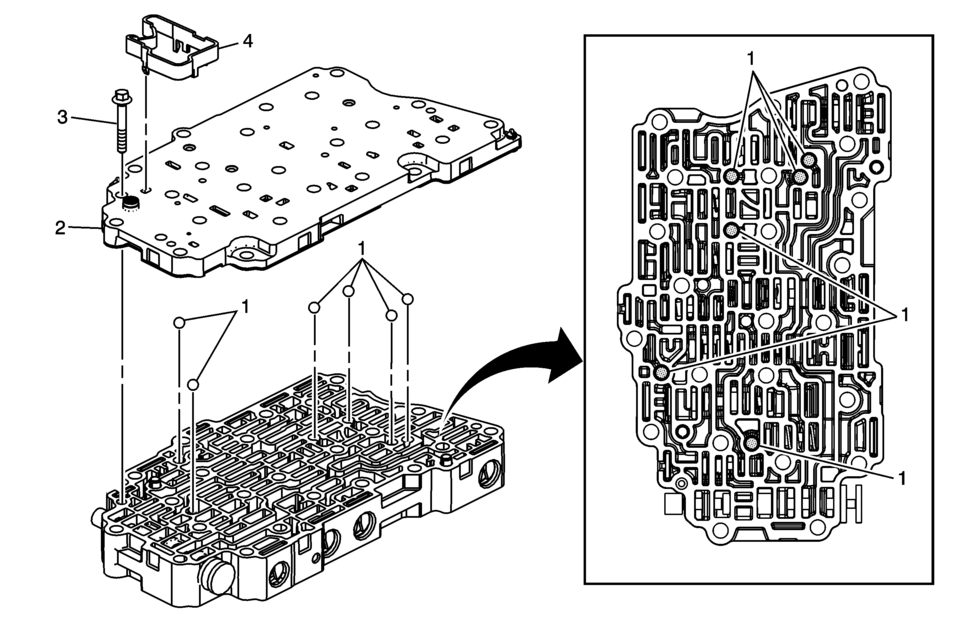

Callout

Component Name

1

Valve Body Ball Check Valve (Qty: 6)

2

Valve Channel Plate

3

Control Valve Body Bolt M5 x 40.5 (Qty: 1)

Caution:

Refer to Fastener Caution.

Tighten


7 Y (62 lb in)

4

Control Solenoid Valve Support

Control Valve Body Assembly Assemble (Gen 1)
Control Valve Body Assembly Assemble Callout Component Name 1 Valve Body Ball Check Valve (Qty: 6) ...

Control Valve Body Assembly Disassemble (Gen 1)
Control Valve Body Assembly Disassemble Callout Component Name 1 Control Solenoid Valve Support 2 ...
