Chevrolet Sonic Repair Manual: Crankshaft Sprocket Replacement
|
Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the timing belt. Refer to Timing Belt Replacement. |
|
|
1 |

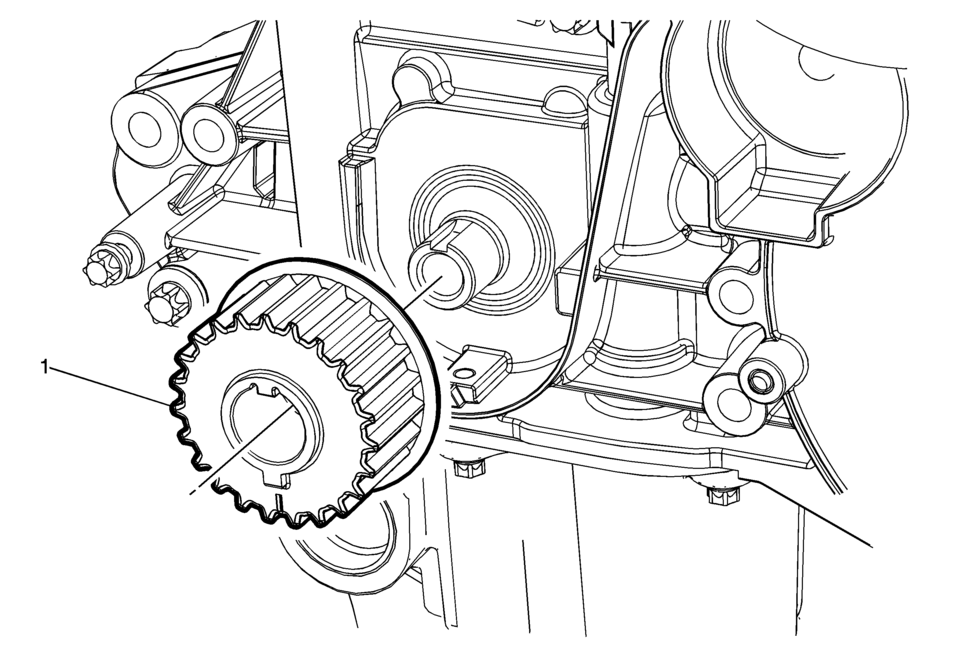

Crankshaft Sprocket Procedure
When installing the crankshaft sprocket, the sprocket and the groove must align. |
Crankshaft Sprocket Removal
Remove the crankshaft sprocket (1). ...
Crankshaft Balancer Installation
Special Tools
EN-470–B Angular Torque Wrench
EN-956?E Extension
EN-49979 Crankshaft Shock Mount Retainer
For equivalent regional tools, refer to Special Tools.
Note: The c ...
