Chevrolet Sonic Repair Manual: Drive Range, Sixth Gear (Gen 2)
As vehicle speed increases, the transmission control module (TCM) processes input signals from the automatic transmission input and output speed sensors, the throttle position sensor and other vehicle sensors to determine the precise moment to command ON the normally-low 26 pressure control solenoid. At the same time, the normally-low 35R pressure control solenoid is commanded OFF and the transmission shifts into Sixth gear.
- 2-6 Clutch Applies
-
26 Pressure Control (PC) Solenoid
The 26 PC solenoid is commanded ON, allowing actuator feed limit fluid to enter the PCS 26 clutch fluid circuit. PCS 26 clutch fluid is then routed through orifice #24 to the 2-6 clutch regulator valve.
2-6 Clutch Regulator Valve
PCS 26 clutch fluid, at the 2-6 clutch regulator valve, opposes 2-6 clutch regulator valve spring force and orificed 26 clutch fluid pressure to regulate drive fluid pressure into the 26 clutch circuit. 26 clutch fluid is then routed through orifice #22 to the 2-6 clutch assembly in the transmission case, and through orifice #4 to the spring end of the 2-6 clutch regulator valve.
2-6 Clutch
The 26 clutch fluid from the 2-6 clutch regulator valve is routed through the transmission case to the 2-6 clutch piston assembly. The 26 clutch fluid pressure moves the piston against 2-6 clutch spring force to apply the 2-6 clutch plates.
Accumulator
PCS 26 clutch fluid is also routed to an accumulator valve. The accumulator valve is used to dampen any pressure irregularities occurring in the PCS 26 clutch fluid circuit. This helps to control clutch apply fluid pressure and clutch apply feel.
- 3-5 Reverse Clutch Releases
-
35R Pressure Control (PC) Solenoid
The 35R PC solenoid is commanded OFF allowing PCS 35 reverse clutch fluid from the 3-5-reverse clutch regulator valve to exhaust.
3-5-Reverse Clutch Regulator Valve
PCS 35 reverse clutch fluid exhausts, allowing 3-5-reverse clutch regulator valve spring force to move the 3-5-reverse clutch regulator valve to the released position. This allows exhausting 35 reverse clutch fluid pressure to pass into the exhaust backfill circuit in order to assist the 3-5-reverse clutch piston spring to quickly release the 3-5-reverse clutch.
3-5-Reverse Clutch
3-5-reverse clutch spring force, assisted by exhaust backfill pressure, moves the 3-5-reverse clutch piston to release the 3-5-reverse clutch plates and force 35 reverse clutch fluid to exhaust from the 3-5-reverse and 4-5-6 clutch housing assembly. The exhausting 35 reverse clutch fluid pressure is routed to the 3-5-reverse clutch regulator valve where it enters the exhaust backfill circuit.

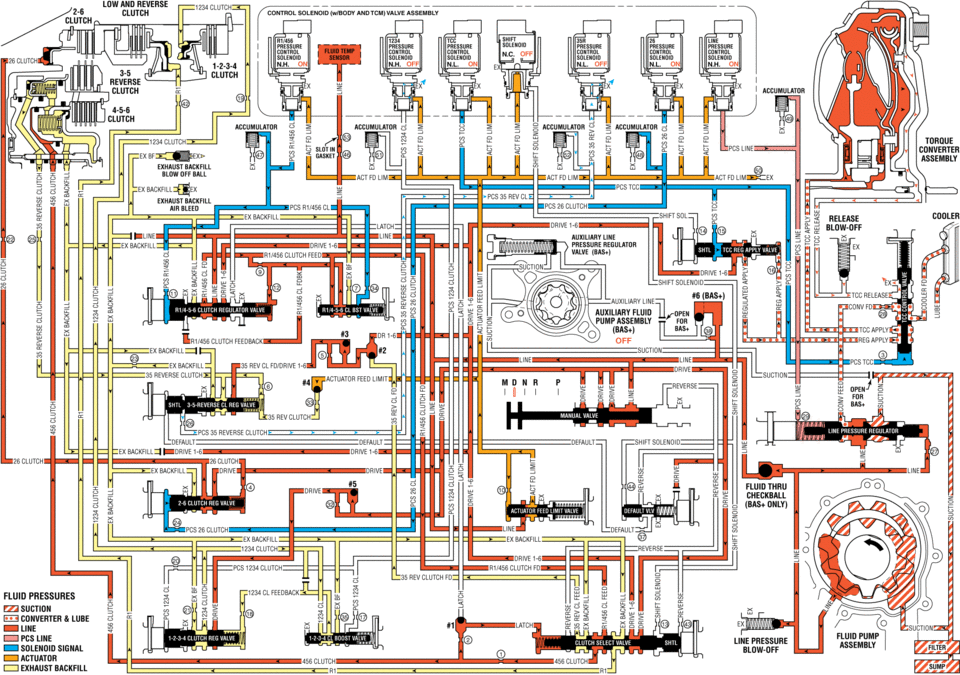

- Drive Range, Sixth Gear ?#8201;Gen 2/Hybrid
ldw and reverse clutch? clutch clutch pres cuumm n.l-1. un ex line clutch clutch ex bf exhaust pcs cl acciimulatnn solenijid valve assembly press pressure cnnmm cum cnmm off on off ex f08 1234 cl pcs 35 rev cl pressure reculatur aceumiilatur act fd shift line auxiliary fluid pump assembly tdrdue converter assembly tcc apflv too release u: r- -n cooler fd lube suctidm conv feed shift sulenoid reverse shift fluid thru ex reverse drtve (bas+ omv) ex default urram. exhaust backfill airbleed ex badkfill clutch feed i1 clutch feedback ex eackfill reverse clutch actuator feed limit ..... 35 rev clutch pcs reverse clutch default :ex -drive drive clutch ex drive pcszg clutch lme ex backfill ex backhll clutch clutch clutch fluid sucnou converter lube line pcs line solenoid signal actuator i:i exhaust backfill shift solenoid reverse clutch ex eiackfill line pressure blow-off checkball
