Callout |
Component Name |
---|---|
Warning: Refer to SIR Warning.
|
|
1 |

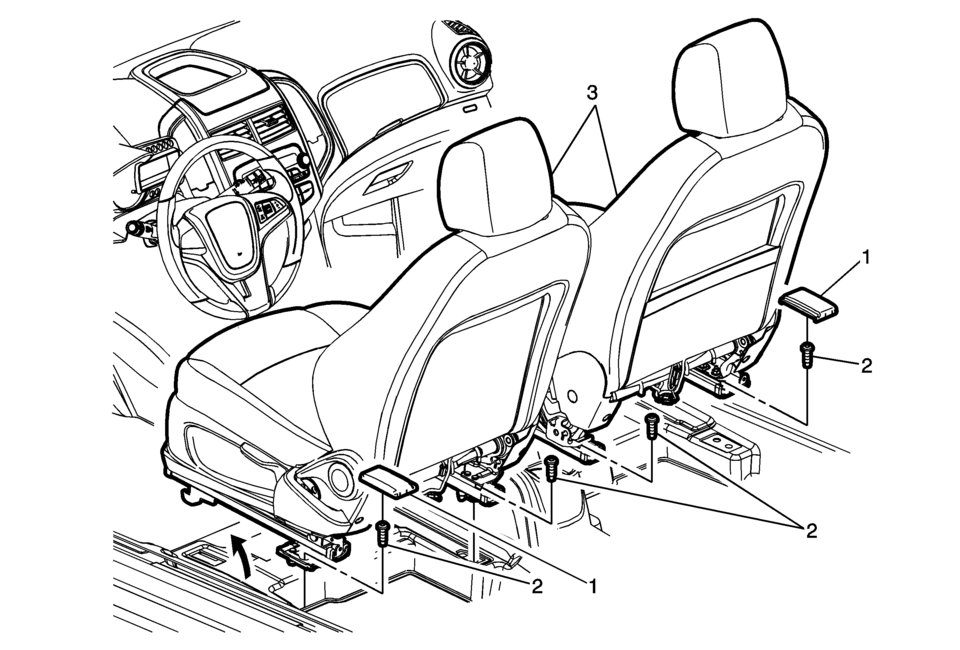

Front Seat Riser Finish Cover (Qty:?€‰2) Procedure
Remove the front seat riser cover. Refer to Front Seat Riser Finish Cover Replacement. |
2 |
Front Seat Mounting Bolt (Qty:?€‰4) Caution: Refer to Fastener Caution. Procedure
Adjust the seat to the full forward position to gain access to the rear bolts. Tighten
40?€‰Y (30?€‰lb?€‰ft) |
3 |
Driver or Passenger Seat Assembly (Qty:?€‰2) Procedure
|
Front Wheelhouse Liner Replacement (Front)
Front Wheelhouse Liner Replacement
Callout
Component Name
Preliminary Procedure
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and
Installation.
1
Front Wheelhouse Liner Scr ...
Instrument Panel Center Molding Replacement (With U58)
Instrument Panel Center Molding Replacement
Callout
Component Name
1
Instrument Panel Center Molding Assembly
Procedure
Use a flat bladed plastic trim tool in the shown locations, then
rotate the trim tool 90 ...
Lift Plate and Holding Fixture Installation
Lift Plate and Holding Fixture Installation
Callout
Component Name
1
DT-47811-A Transmission Lift Plate
Warning: Handle with care, the transmission assembly weighs
over 83 Kg (183 lbs). Bodily i ...
