Chevrolet Sonic Repair Manual: Evaporative Emission Canister Vent Solenoid Valve Replacement
|

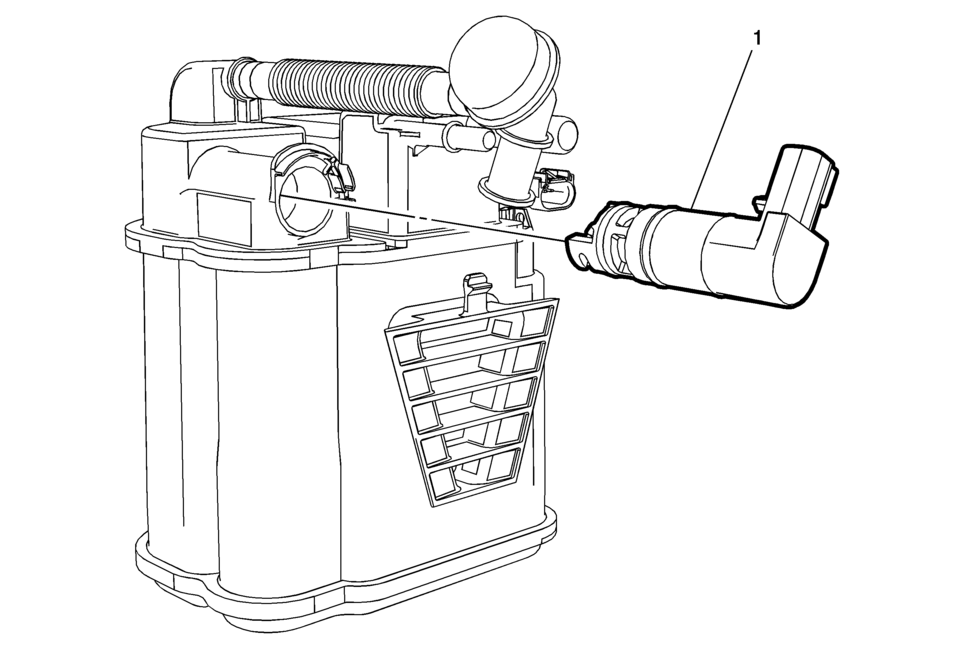

Callout |
Component Name |
|---|---|
Preliminary Procedures
|
|
|
1 |
Evaporative Emissions Canister Vent Solenoid Valve Procedure
Turn the evaporative emission canister vent solenoid valve counter clockwise 45 degrees and remove the solenoid from the evaporative emissions canister. |
Evaporative Emission Canister Purge Solenoid Valve Replacement
Evaporative Emission Canister Purge Solenoid Valve Replacement
Callout
Component Name
1
Purge Pipe Fittings (Qty: 2)
...
PCV
...
