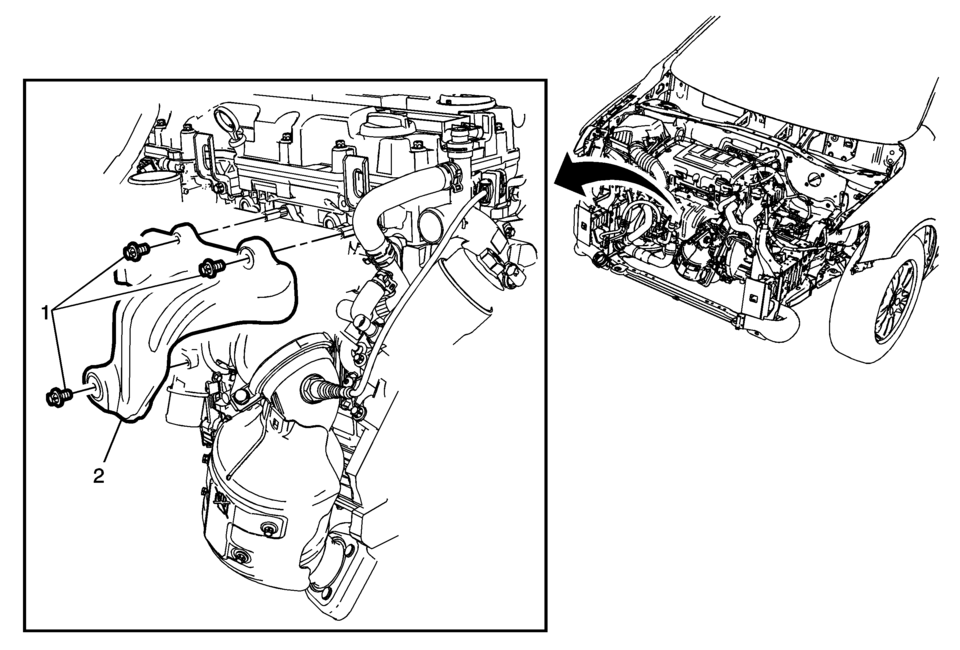

Exhaust Manifold Heat Shield Replacement

Callout

Component Name

Warning:

Refer to Exhaust Service Warning.

1

Exhaust Manifold Heat Shield Fasteners (Qty: 3)

Caution:

Refer to Fastener Caution.

Tighten


9 Y (80 lb in).

2

Exhaust Manifold Heat Shield

Exhaust Manifold Heat Shield Removal
Remove the 3 exhaust manifold heat shield bolts (1) and the washers. Remove the exhaust manifold heat shield (2). ...

Exhaust Manifold Heat Shield Replacement (LUW)
Catalytic Converter Heat Shield Replacement Callout Component Name Warning: Refer to Exhaust Service Warning. Prelimin ...
