Floor Rear Air Outlet Duct Replacement - Right Side

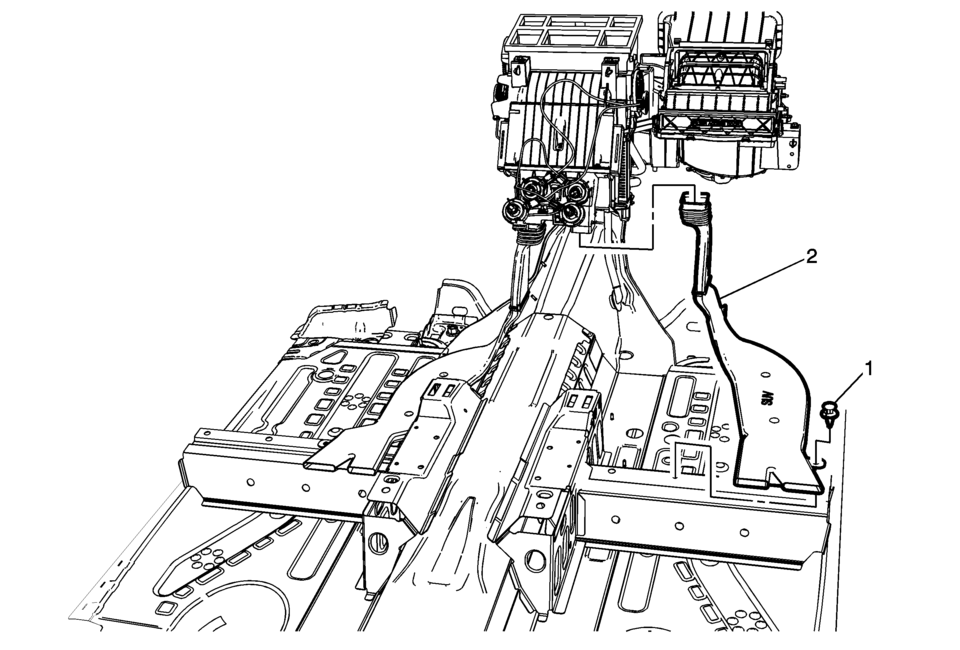

Callout

Component Name

Preliminary Procedure

Remove the front floor carpet. Refer to Floor Panel Carpet Replacement.

1

Floor Rear Air Outlet Duct Fastener

2

Floor Rear Air Outlet Duct

Procedure

Transfer all necessary components.
