Chevrolet Sonic Repair Manual: Fog Lamps (RS)
To replace the front fog lamp bulb:
- Locate the fog lamp located under the front fascia.
- Remove the cap from the back of the fog lamp assembly.
- Disconnect the electrical connector from the fog lamp bulb assembly.

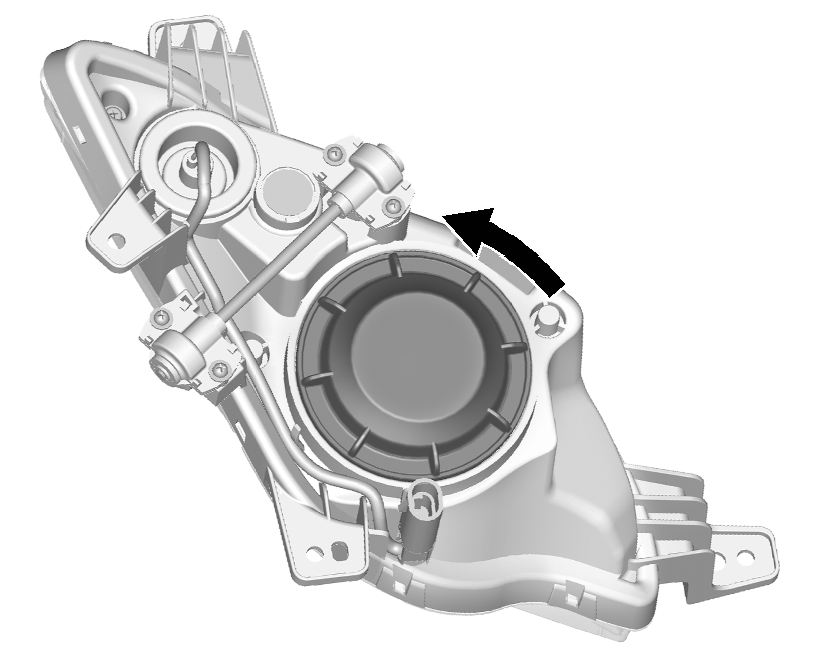

- Remove the bulb by turning it counterclockwise and pulling it straight out of the assembly.
- Install the new bulb by turning it clockwise into the assembly.
- Reconnect the electrical connector.
- Replace the cap on the back of the fog lamp assembly.
Fog Lamps (LS, LT, and LTZ)
To replace the front fog lamp bulb:
Locate the fog lamp located under the front fascia.
Disconnect the electrical connector from the fog lamp bulb assembly.
Remove the bulb by turning it count ...
Front Fog Lamp Bulb Replacement
Front Fog Lamp Bulb Replacement
Callout
Component Name
Preliminary Procedure
Remove either the left front or right front wheelhouse ...
