Chevrolet Sonic Repair Manual: Front Bumper Energy Absorber Replacement
|

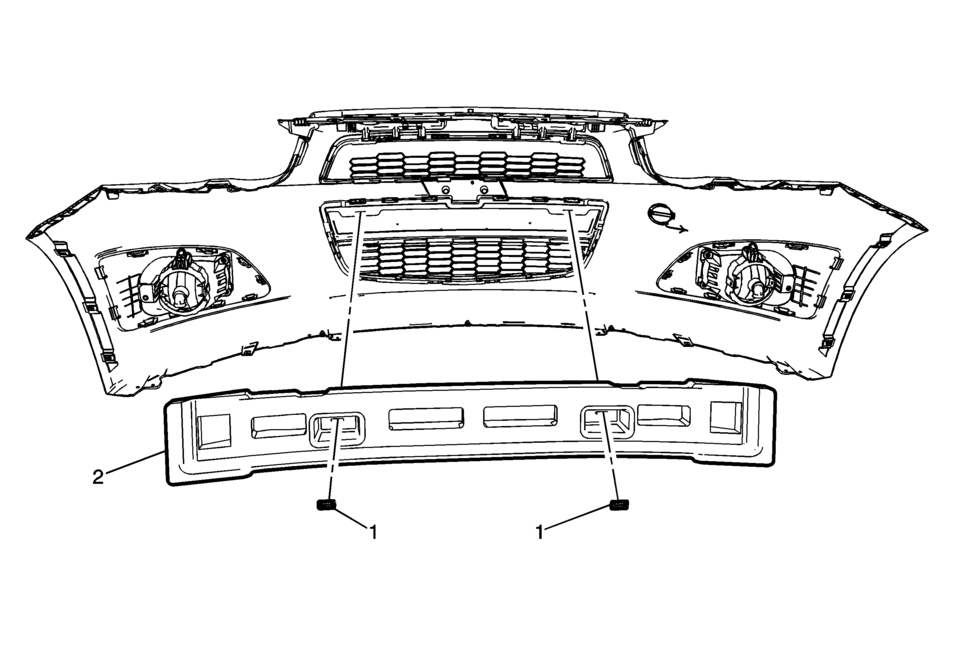

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement. |
|
|
1 |
Front Bumper Energy Upper Absorber Push-On Retainer (Qty:?€‰2) |
|
2 |
Front Bumper Energy Upper Absorber Procedure
Reposition the electrical harness from the absorber. |
Front Bumper
...
Front Bumper Fascia Air Deflector Replacement
Front Bumper Fascia Air Deflector Replacement
Callout
Component Name
Preliminary Procedure
Remove the front bumper fascia openi ...
