Front Fender Replacement

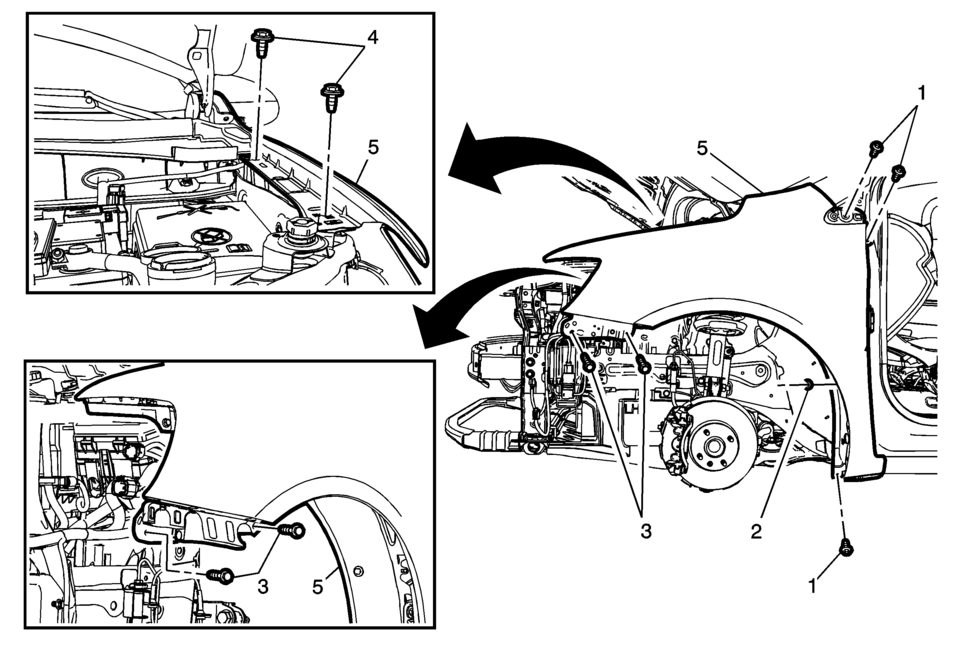

Callout

Component Name

Preliminary Procedures

  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement.
  2. Remove the headlamp. Refer to Headlamp Replacement.
  3. Remove the front wheelhouse liner front and rear. Refer to Front Wheelhouse Liner Replacement.
  4. Remove the body side upper front applique. Refer to Body Side Upper Front Applique Replacement.
  5. Remove the front bumper fascia guide. Refer to Front Bumper Fascia Guide Replacement.

1

Front Fender Bolt (Qty:?€‰3)

Caution:

Refer to Fastener Caution.

Tighten


9?€‰Y (80?€‰lb?€‰in)

2

Front Fender Nut

Tighten


9?€‰Y (80?€‰lb?€‰in)

3

Front Fender Bolt (Qty:?€‰2)

Tighten


9?€‰Y (80?€‰lb?€‰in)

4

Front Fender Bolt (Qty:?€‰2)

Tighten


9?€‰Y (80?€‰lb?€‰in)

5

Front Fender

Procedure

  1. Disconnect the electrical connectors.
  2. Transfer parts as needed.
Tire and Wheel Removal and Installation
