Chevrolet Sonic Repair Manual: Front Side Door Opening Floor Carpet Retainer Replacement
|

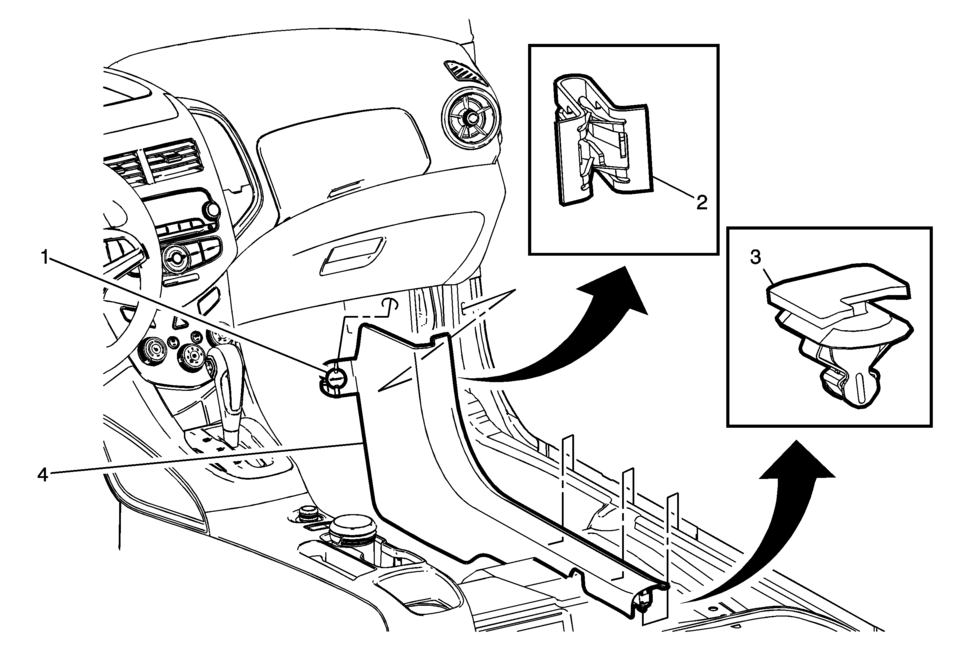

Callout |
Component Name |
|---|---|
|
1 |
Front Side Door Opening Floor Carpet Retainer Retainer |
|
2 |
Front Side Door Opening Floor Carpet Retainer Clip |
|
3 |
Front Side Door Opening Floor Carpet Retainer Clip (Qty:?€‰3) |
|
4 |
Front Side Door Opening Floor Carpet Retainer Assembly |
Floor Panel Carpet Replacement
Floor Panel Carpet Replacement
Callout
Component Name
Preliminary Procedures
Remove front seats. Refer to Driver or Passenger Seat ...
Rear Compartment Floor Panel Carpet Replacement (Hatchback)
Rear Compartment Floor Panel Carpet Replacement
Callout
Component Name
1
Rear Compartment Floor Panel Carpet Assembly
...
