Chevrolet Sonic Repair Manual: Fuel Tank Filler Door Latch Housing Replacement

Chevrolet Sonic Repair Manual / Powertrain / Engine / Fuel System / Fuel Tank Filler Door Latch Housing Replacement

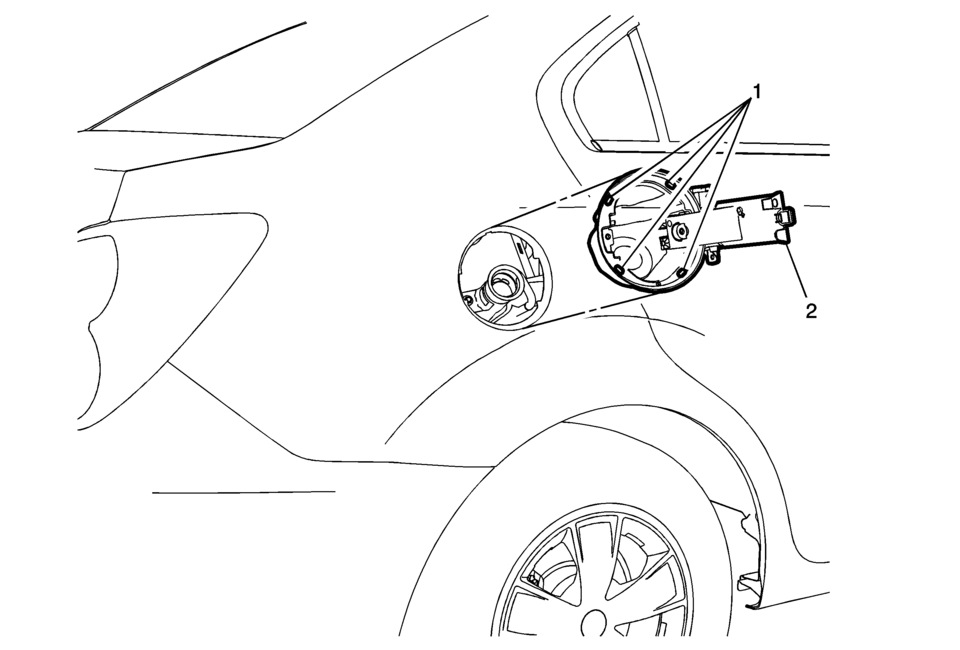

Fuel Tank Filler Door Latch Housing Replacement

Callout

Component Name

Preliminary Procedures

  1. Remove the rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement.
  2. Remove the fuel tank filler door. Refer to Fuel Tank Filler Door Replacement.

1

Fuel Tank Filler Door Latch Housing Retainer (Qty: 4)

Procedure

Release the 4 filler door latch housing retainers on the back of the housing.

2

Fuel Tank Filler Door Latch Housing

Procedure

Press the fuel tank filler housing outward from the fuel filler pipe and the quarter panel.

Fuel Tank Draining
Warning: Refer to Gasoline/Gasoline Vapors Warning. Note: The fuel tank must be drained with a suitable, commercially-available fuel removal unit and suction hose - follow safety ...
