Callout |
Component Name |
---|---|
1 |

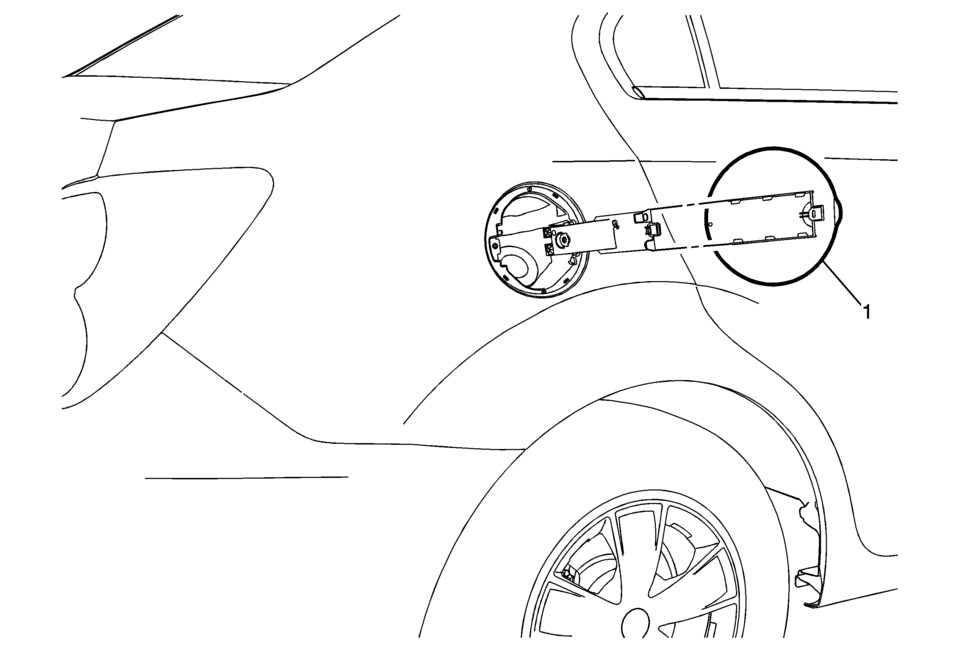

Fuel Tank Filler Door Procedure
Position the fuel tank filler door to the full open position. Using light outward sliding pressure on the filler door, release the retainer on the fuel tank filler door from the hinge. |
Throttle Body Heater Inlet Pipe Replacement (LUW)
Throttle Body Heater Inlet Pipe Replacement
Callout
Component Name
Preliminary Procedure
Drain the cooling system. Refer to Cooling System Draining and Filling.
1
Throttle Body Heater Inlet Pipe
...
Intake Manifold Replacement (LDE)
Removal Procedure
Disconnect the negative battery cable. Refer to Battery Negative Cable
Disconnection and Connection.
Remove the throttle body assembly. Refer to Throttle Body Assembly Replacement.
Disconnect wiring harness plug.
Disconnect the pipes from ...
Drive Belt Tensioner Installation
Install the drive belt tensioner (1).
Install the upper drive belt tensioner bolt (2).
Install the lower drive belt tensioner bolt (3).
Caution: Refer to Fastener Caution.
Tighten the lower drive belt tensioner bolt (M8) to 22 Y (16 ...
