Chevrolet Sonic Owner's Manual: Hazard Warning Flashers

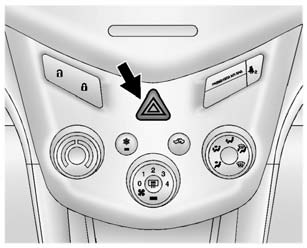

(Hazard Warning Flasher): Press
and momentarily hold this button to make the front and rear turn signal lamps flash
on and off. This warns others that you are having trouble. Press and momentarily
hold again to turn the flashers off.
