Chevrolet Sonic Repair Manual: Horn Replacement
|

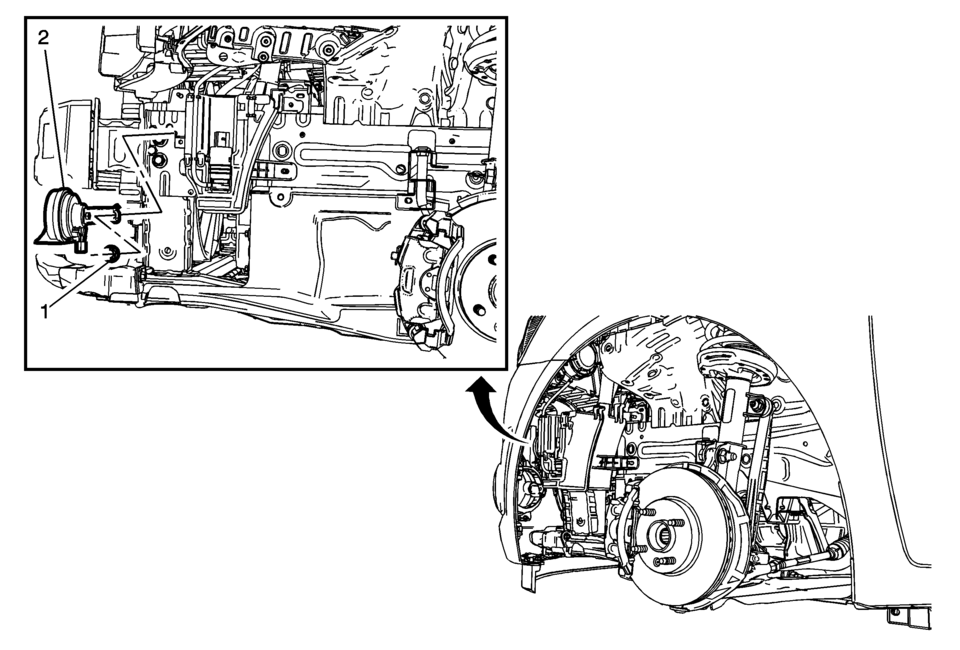

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the front wheelhouse liner front. Refer to Front Wheelhouse Liner Replacement. |
|
|
1 |
Horn Nut Caution: Refer to Fastener Caution.
17?€‰Y (13?€‰lb?€‰ft) |
|
2 |
Horn Procedure
Disconnect the electrical connector. |
Horn
...
Horns System Description and Operation
System Description
The horn system consists of the following components:
HORN fuse
Underhood fuse block (contains PCB horn relay)
Horn switch
Horn
Body control module (BCM)
...
