Chevrolet Sonic Repair Manual: Instrument Panel Center Air Outlet Replacement
|

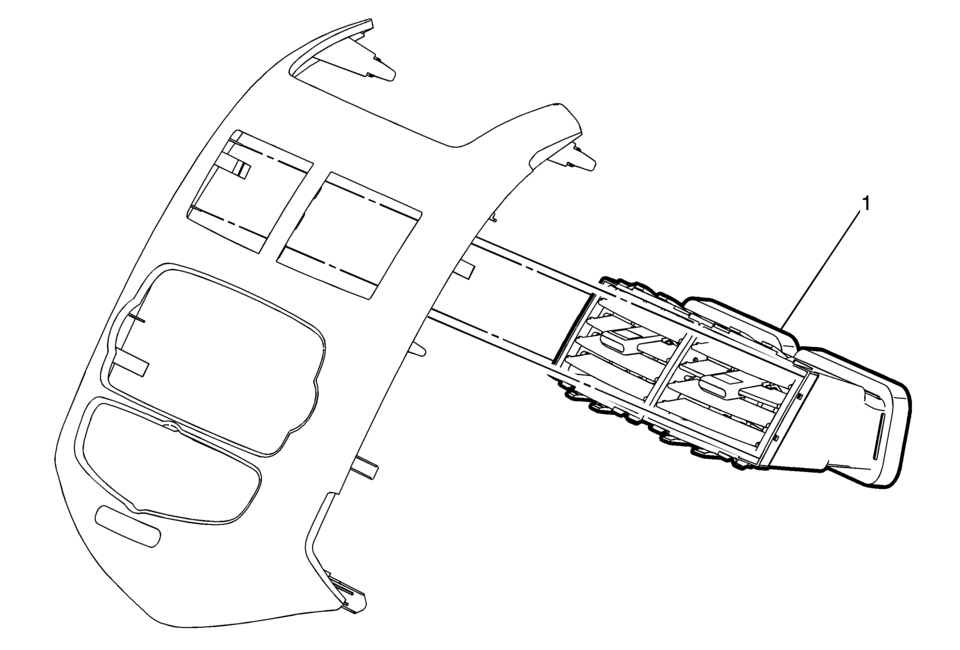

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the instrument panel center molding. Refer to Instrument Panel Center Molding Replacement. |
|
|
1 |
Instrument Panel Center Air Outlet Assembly Procedure
Unsnap the instrument panel center air outlet from the center molding assembly. |
Instrument Panel Assembly Replacement
Instrument Panel Assembly Replacement
Callout
Component Name
Preliminary Procedure
Remove the right and left windshield side garnis ...
Instrument Panel Center Molding Replacement (With U58)
Instrument Panel Center Molding Replacement
Callout
Component Name
1
Instrument Panel Center Molding Assembly
Procedu ...
