Chevrolet Sonic Repair Manual: Instrument Panel Compartment Door Dampener Replacement
|

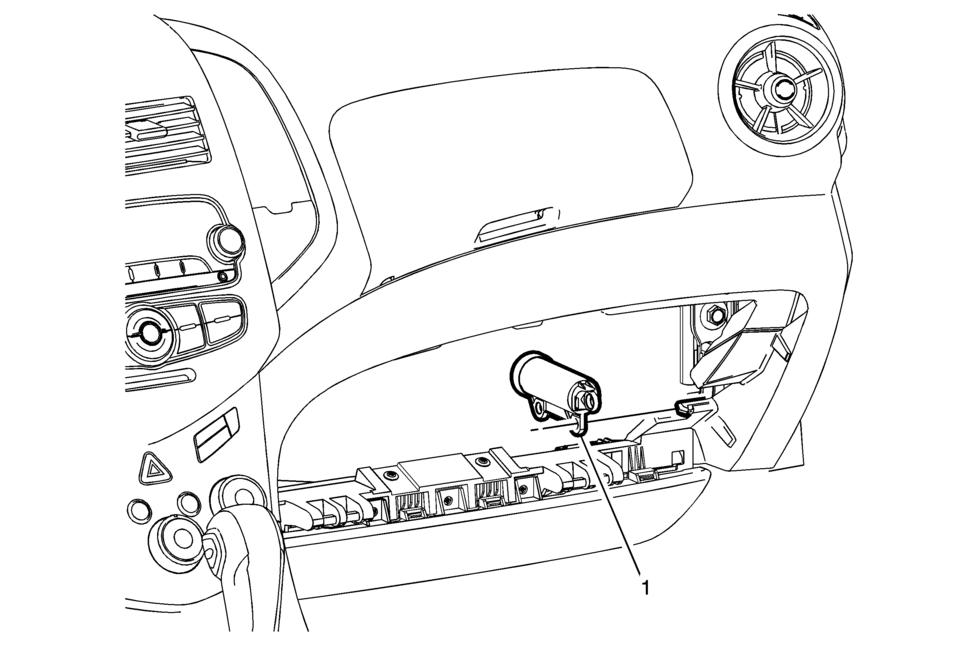

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove the instrument panel lower compartment. Refer to Instrument Panel Lower Compartment Replacement. |
|
|
1 |
Instrument Panel Compartment Door Dampener Procedure
Unsnap the dampener assembly from the instrument panel assembly. |
Instrument Panel Center Upper Molding Replacement
Instrument Panel Center Upper Molding Replacement
Callout
Component Name
Preliminary Procedure
Remove the instrument panel cent ...
Instrument Panel Compartment Door Latch Replacement
Instrument Panel Compartment Door Latch Replacement
Callout
Component Name
1
Instrument Panel Compartment Door Latch Fas ...
